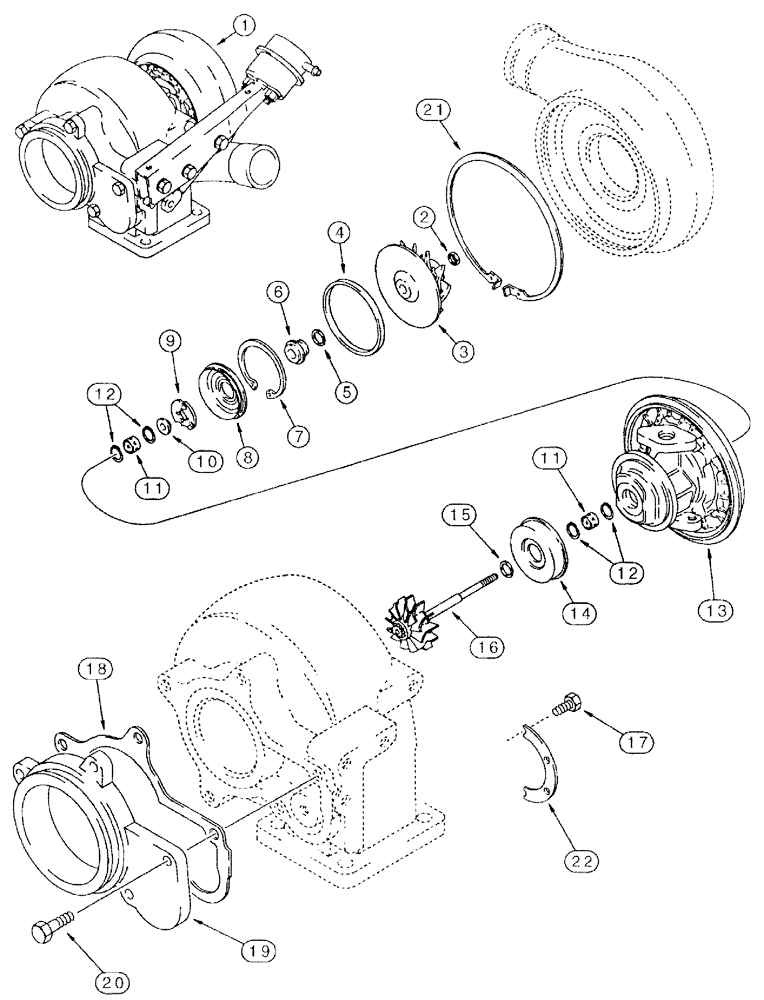

Запчасти Case IH SPX3310 (03-012) - TURBOCHARGER (01) - ENGINE

1

JR802697

REMAN-TURBOCHARGER

WITH GASKET

1шт.

See Fig. 03-013 for the remainder of the turbocharger assembly.

1шт.

1

JC536327

CORE-TURBOCHARGER

Return Number

1шт.

1

J802697

KIT

turbocharger with gaskets

1шт.

J537817

HOUSING

CENTER, TURBOCHARGE

1шт.

Consists of Refs. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER

1шт.

7

NSS

NOT SOLD SEPARAT

RING

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING, THRUST

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING, JOURNAL

2шт.

12

NSS

NOT SOLD SEPARAT

RING

4шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT

1шт.

17

J759917

SET SCREW

6шт.

18

J535001

GASKET,0.25mm Thk

mounting

1шт.

19

J527759

ADAPTER

connection

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

TURBO

1шт.

Consists of Refs. 2, 4, 5, 7 - 9, 11, 12 and 15

1шт.
