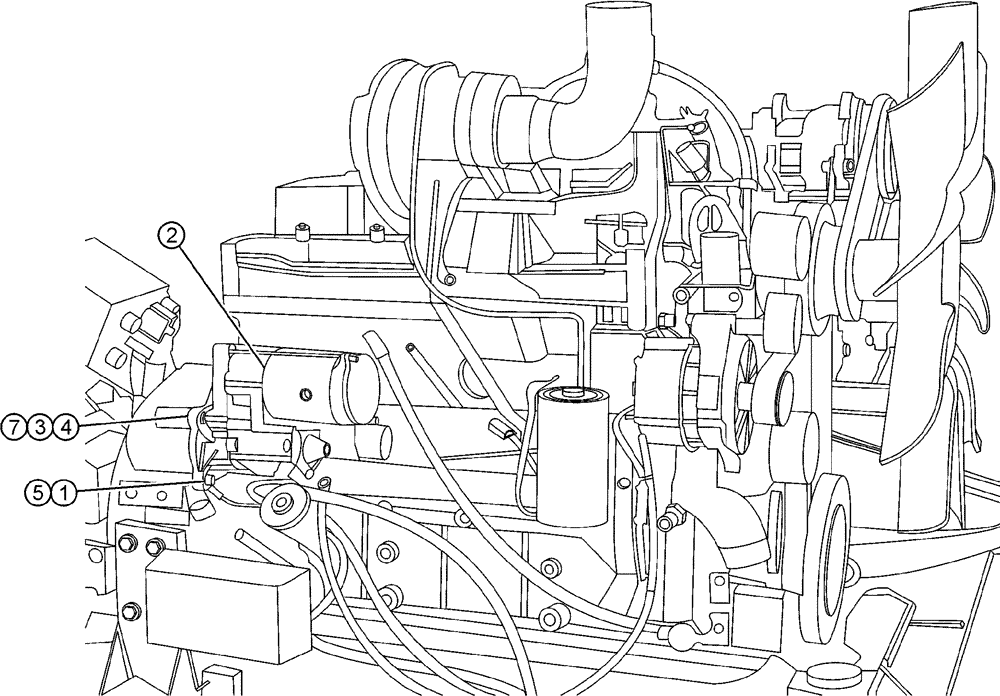

Запчасти Case IH SPX3310 (03-002) - STARTER PACKAGE W/HARDWARE (01) - ENGINE

1

258820A1

SCREW

M5 x 8

1шт.

2

116928A2

STARTING MOTOR

12V, 4.0 KW, Denso

1шт.

2

116928A2R

REMAN-STARTER

1шт.

2

116928A2C

CORE-STARTER

Return Number

1шт.

3

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

5

86509828

LOCK WASHER,M5

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

140017

WASHER,M10 x 20mm OD x 2mm Thk

3шт.

178149A1

SOLENOID SWITCH

Intermediate Starter Relay, Not Shown

1шт.
