Запчасти Case IH SPX3310 (03-001[01]) - ENGINE PACKAGE (01) - ENGINE

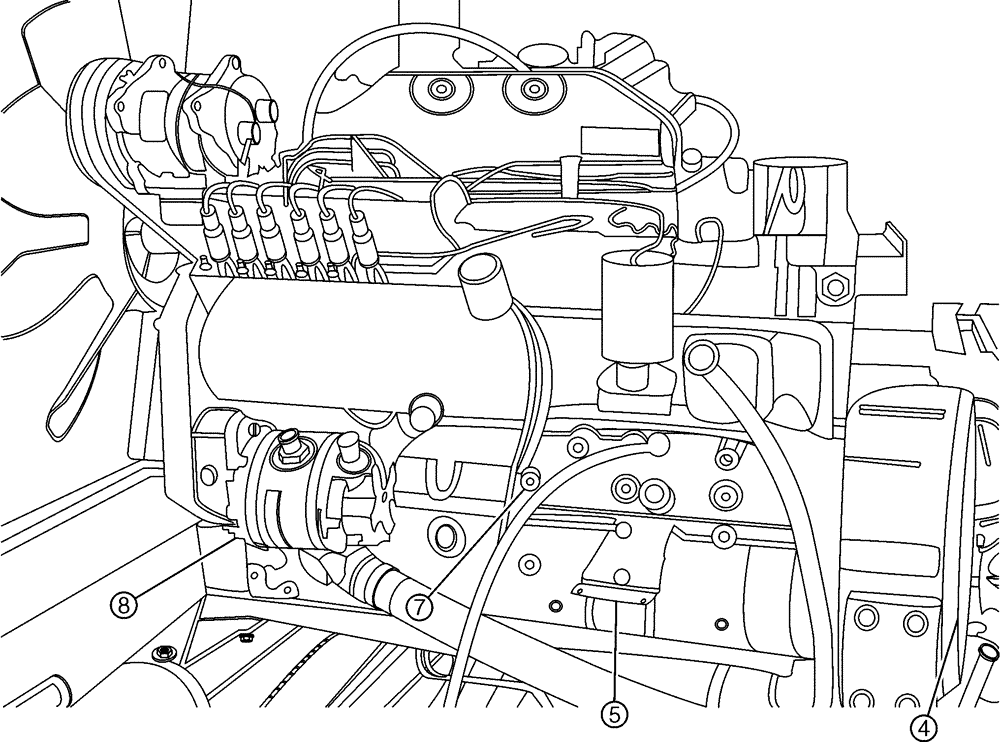

Схема запчастей Case IH SPX3310 - (03-001[01]) - ENGINE PACKAGE (01) - ENGINE
4
7
5
8

Артикул

Название

Примечание

Количество

2

BN315577

ALTERNATOR

1шт.

See Fig. 03-032

1шт.

3

BN311554

ENGINE

STARTER MOTOR, w/hardware

1шт.

See Fig. 03-002

1шт.

4

BN311596

FLYWHL W/HDWE

1шт.

See Fig. 03-003

1шт.

5

BN314934

ENGINE

CDC 5.9L-200HP ASY

1шт.

5a

362559A3

ENGINE

CDC (6TA-590) 200HP

1шт.

Parts of Engine, CDC 5.9L-200 HP ASSY, P/N BN314934

1шт.

5b

335865A1

BASIC ENGINE

6TA-590/P3000, pump

1шт.

Includes all parts except starter, alternator, fan, fan belt, flywheel and housing, oil fill and dipstick, front pulley, belt tensioner

1шт.

Includes all parts except air cleaner, muffler and exhaust manifold, fuel injection pump, injectors and lines

1шт.

5c

335865A1R

REMAN-BASIC ENGINE

Remanufactured, For N.A. Only

1шт.

Component parts shown on this page do not apply to the remanufactured assembly

1шт.

5b

335865A1C

CORE-BASIC ENGINE

Return Number, For N.A. Only

1шт.

5d

J933643

SKELETON ENGINE

BLOCK ASSEMBLY- SHORT, NEW

1шт.

Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

Order P/N J933220 Hardware Kit, When Ordering P/N J933643 Short Block Assembly or P/N J935936 Stripped Block

1шт.

5e

JR933643

REMAN-SHORT ENGINE

BLOCK ASSEMBLY- SHORT, REMANUFACTURED

1шт.

North America only

1шт.

5f

J286503

FUEL FILTER

1шт.

Parts of Engine, CDC 5.9L-200 HP ASSY, P/N BN314934

1шт.

5g

BN314986

TEMPERATURE SENDER

ENGINE SERVICE ITEMS

1шт.

6

326347A1

TEMPERATURE SENDER

temperature 1/2-14 NPTF

1шт.

7

BN319998

SENDER UNIT

oil pressure

1шт.

8

BN316439

A/C

1шт.

See Fig. 03-031

1шт.

9

87270000

WIRE HARNESS

ENGINE

1шт.

9

BN322891

WIRE HARNESS

CDC 200 ENGINE

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

9a

87272737

OIL BREATHER, Start Serial: 20274

1шт.

Not Shown

1шт.

9b

293685A1

HOSE,15.75 mm ID x 650.00 mm

DRAIN

1шт.

9c

87272738

HOSE,0.50" ID

Mender

1шт.

Выбрано товаров: 34
