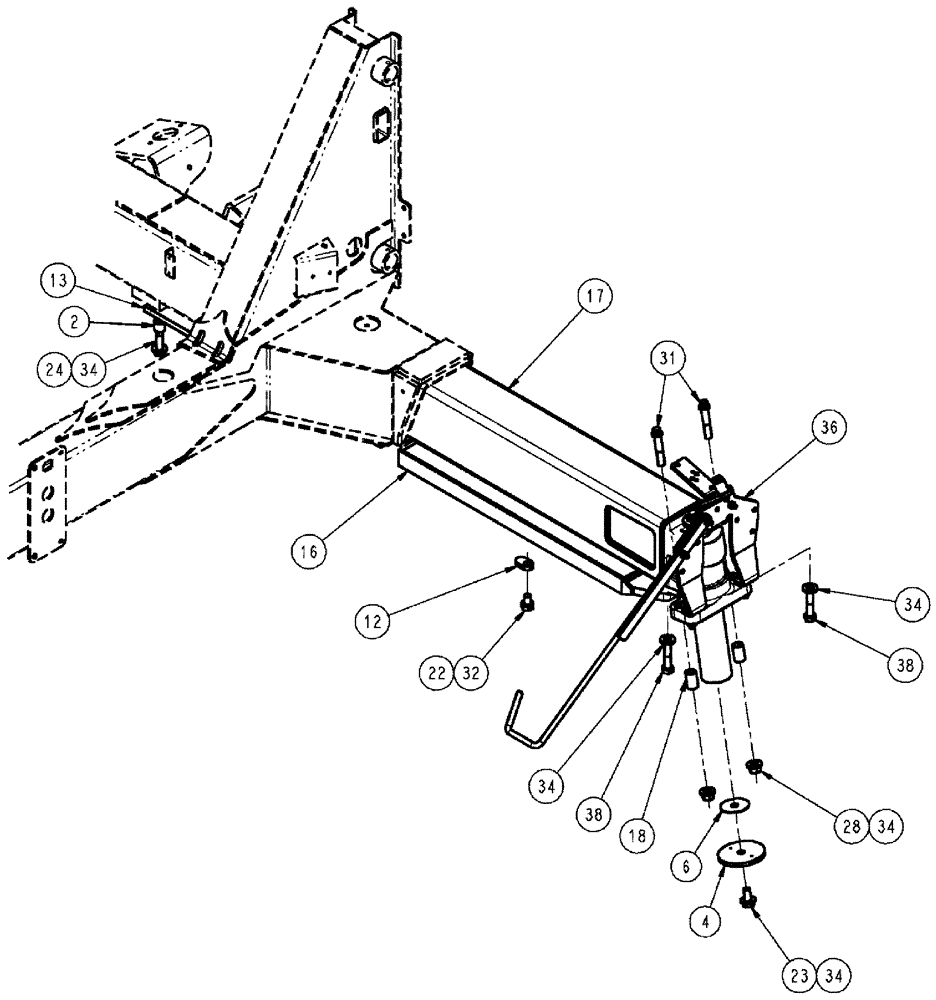

Запчасти Case IH SPX3310 (04-019) - AXLE GROUP, NON STEER, LR Suspension & Frame

1

BN1243001

LOCTITE

243-31 Removable

1шт.

2

BN301998

DOWEL

Hollow

1шт.

4

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

5

BN307971

SEALANT

thread

1шт.

6

BN312604

SPACER

AXLE

1шт.

12

BN320759

STOP

tab, axle adjust

1шт.

13

87268923

BAR

Axle Slide

1шт.

16

87268928

SLIDE

Axle adjuster, LR

1шт.

17

87721678

AXLE

Rear

1шт.

18

342939A1

SLEEVE

dowel, hollow

2шт.

19

BN55015

NIPPLE, LUBE

NIPPLE 12 GRADE #2

1шт.

20

BN55077

ANTISEIZE

1шт.

22

87635862

BOLT,Hex, M20 x 35mm, Cl 10.9

Hex, M20 x 35, Full Thrd, 10.9 DOR

1шт.

23

86624002

BOLT,Hex, M20 x 40mm, Cl 8.8

1шт.

24

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

28

264031

NUT,M20 x 2.5, Cl 10

2шт.

31

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20-2.5 X 100, 12PT, 12.9, DRL

2шт.

32

892-11020

LOCK WASHER,M20

1шт.

34

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

6шт.

36

NS

NOT SERVICED

Hose, Non Pivot Group, LR, Start Serial: 22002

1шт.

See Fig. 04-020

1шт.

38

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.
