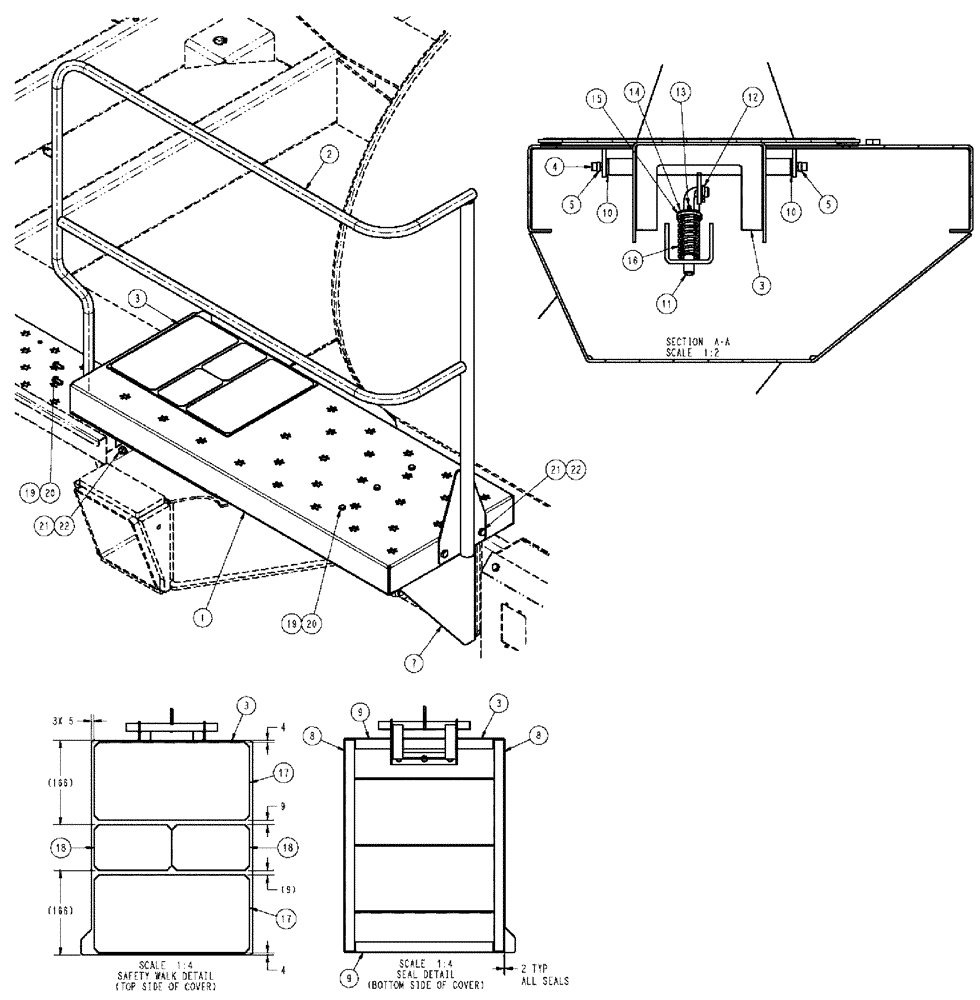

Запчасти Case IH SPX3310 (04-013) - WALKWAY GROUP, L.H. FRONT Suspension & Frame

1

87269514

EXTENSION

L.H. MIDDLE

1шт.

2

87269512

HANDRAIL

1шт.

3

87268721

COVER

STORAGE BOX

1шт.

4

BN319247

PIN,7.94mm OD x 210mm L

SPRING RETENSION

1шт.

5

BN1630425

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 X 1

2шт.

7

87269772

SUPPORT

REAR, MID WALKWAY

1шт.

8

87268723

FOAM

2шт.

9

87268726

FOAM

2шт.

10

BN319151

BUSHING

5/16, SHLDER, NYLON

2шт.

11

381794A1

ROD

COOLER ACCESS DOOR

1шт.

12

19-5380

PIN

HAIR

1шт.

13

86637813

PIN,3.17mm OD x 25mm L, Coiled

1шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

15

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

16

L129280

SPRING

COMPRESSION

1шт.

17

BN54055

PLATFORM

SAFETY WALK

2шт.

18

BN54103

PLATFORM

SAFETY WALK

2шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

20

86528579

NUT,M8 x 1.25

7шт.

21

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

5шт.

22

100037

LOCK NUT,M10 x 1.5, Cl 8

5шт.
