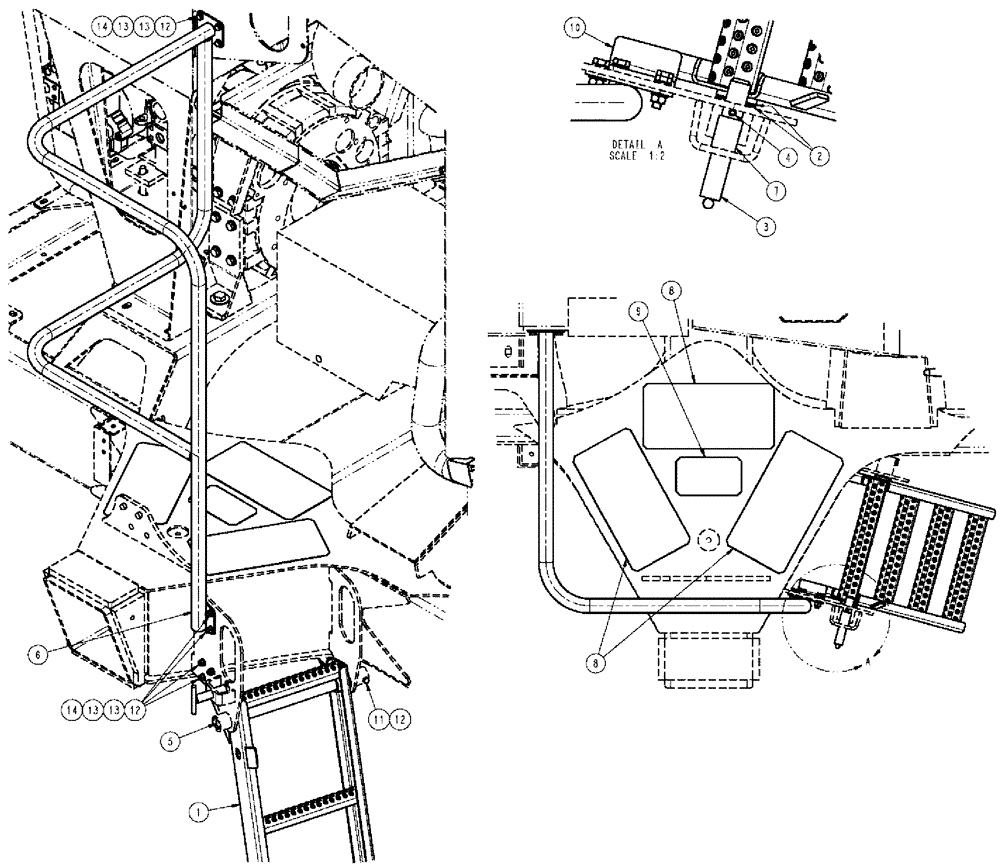

Запчасти Case IH SPX3310 (04-012) - WALKWAY GROUP, R.H. REAR Suspension & Frame

1

87268523

LADDER

1шт.

2

BN321159

BUSHING,25.44mm ID x 27.77mm OD x 26.54mm L

4шт.

3

BN25257

PIN

Side Ladder

1шт.

4

BN31444

PIN, ROLL

1/4 X 1-1/2

1шт.

5

87268525

PIN,25.4mm OD x 394mm L

LADDER

1шт.

6

87268669

HANDRAIL

REAR

1шт.

7

BN31937

SPRING

COMPR .905 X .765 2

1шт.

8

BN54055

PLATFORM

SAFETY WALK

3шт.

9

BN54103

PLATFORM

SAFETY WALK

1шт.

10

87268672

STOP

LADDER PIVOT

1шт.

11

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

12

86528579

NUT,M8 x 1.25

13шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

24шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.
