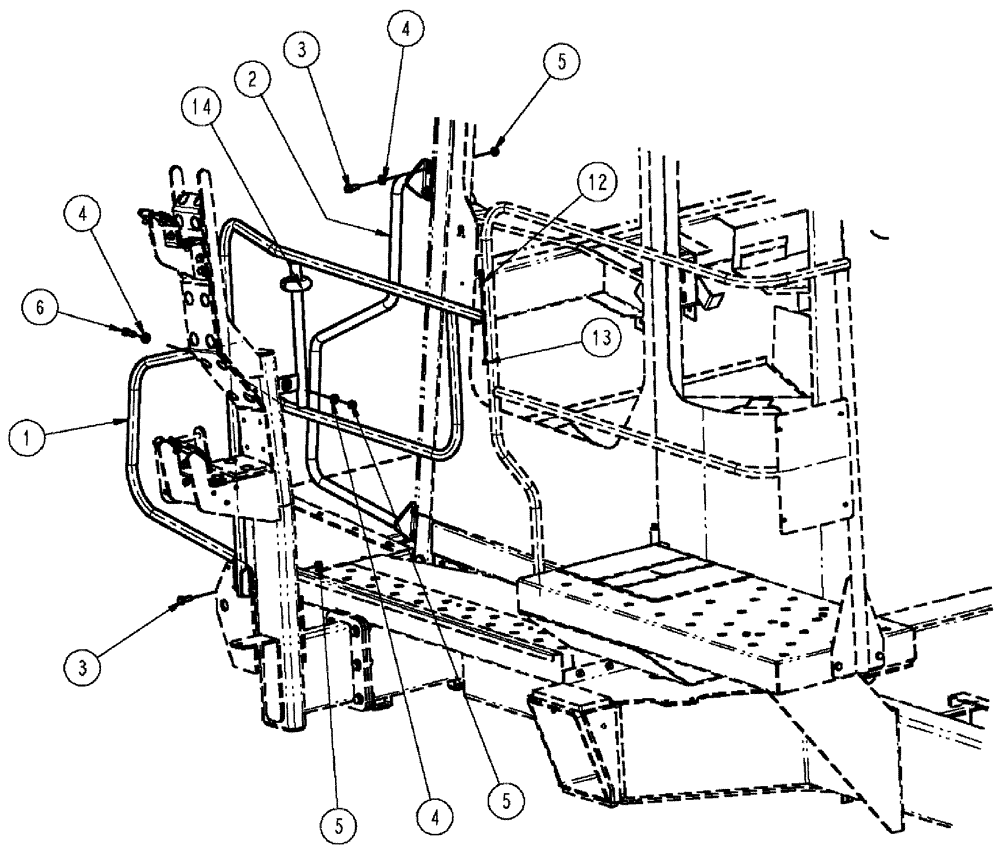

Запчасти Case IH SPX3310 (04-010) - RAIL GROUP, L.H. FRONT Suspension & Frame

1

87269516

HANDRAIL

1шт.

2

BN67722

HANDLE

(FRT LADR)

1шт.

3

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

6шт.

4

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

6шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

7шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

12

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

13

353308

NUT,M6 x 1.0, Cl 8

1шт.

14

87271143

SHOCK ABSORBER

Door Stop

1шт.
