Запчасти Case IH SPX3310 (04-002) - FUEL TANK GROUP Suspension & Frame

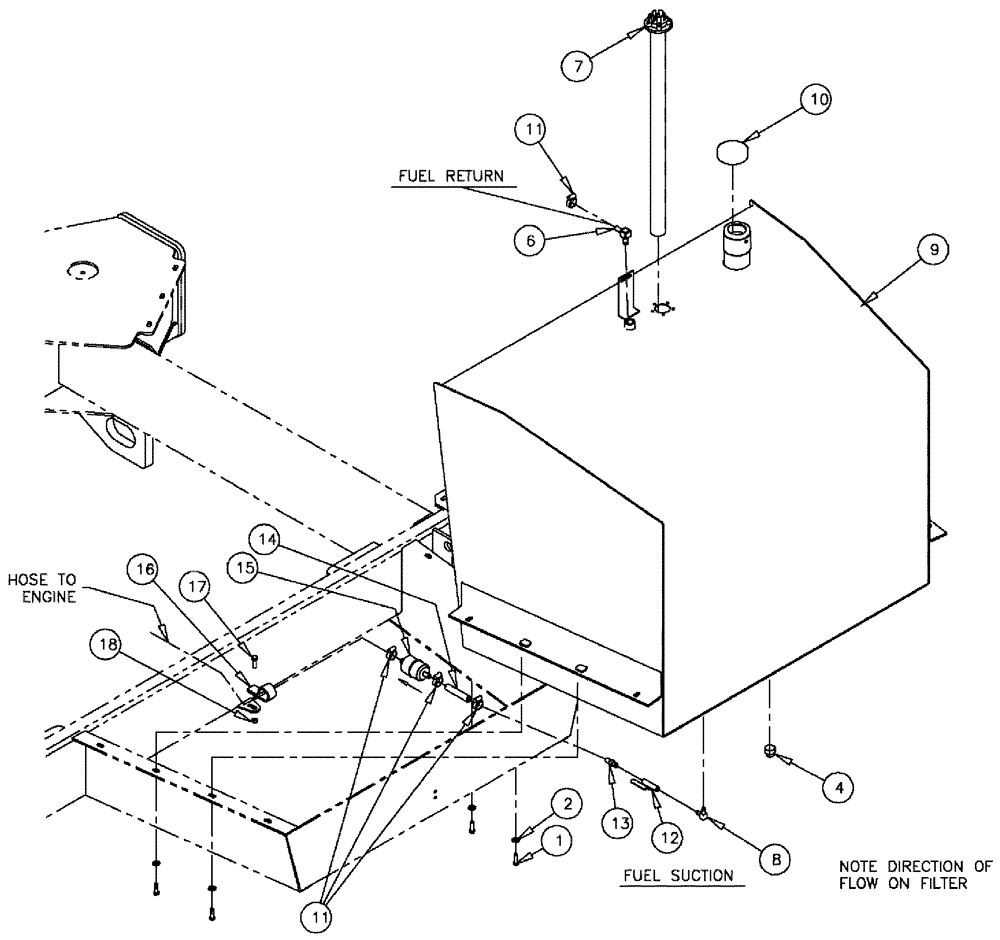

Схема запчастей Case IH SPX3310 - (04-002) - FUEL TANK GROUP Suspension & Frame
10
12
16
17
15
13
4
11
8
7
1
11
18
9
6
2
14

Артикул

Название

Примечание

Количество

1

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

2

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

4

BN72220

PLUG

3/4- NPT MI

1шт.

6

BN66466

ELBOW

Barb, 3/8 NPT x 3/8-90°

1шт.

7

BN314868

SENDER UNIT

SENDER FUEL

1шт.

8

BN317993

ELBOW

90 DEG. 1/4 X 3/8 NPTM

1шт.

9

87270110

FUEL TANK

125 GAL., Start Serial: 7402

1шт.

9

BN310174

FUEL TANK

125 GAL.

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

10

BN27530

CAP

Gas, Vented

1шт.

11

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

4шт.

12

BN94071

VALVE

BRONZE BALL, 1/4 NPT

1шт.

13

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

14

BN317990

FUEL HOSE,0.375" ID x 3.00", SAE 30R6, SAE 30R7

1шт.

15

D139225

FILTER, FUEL

3/8" BARBS

1шт.

16

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

17

BN50254

BOLT,3/8"-16 x 1", Stainless

1шт.

18

88902

NUT,3/8"-16

1шт.

Выбрано товаров: 18
