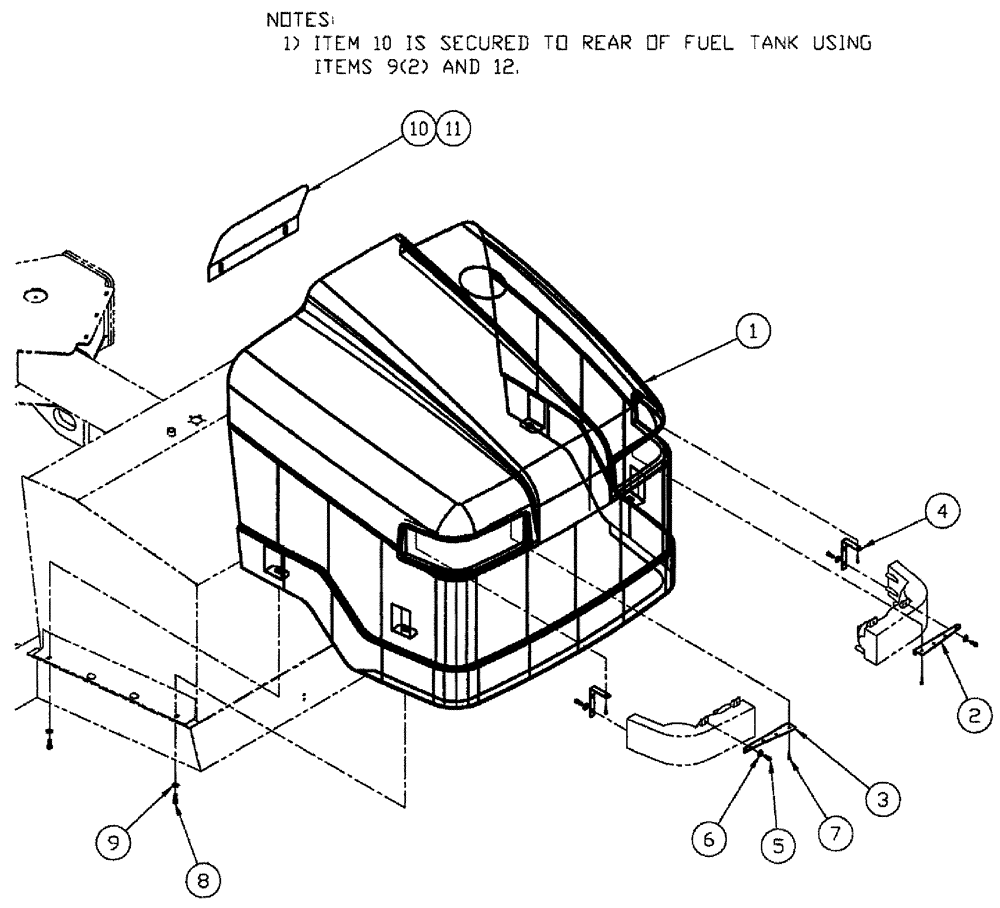

Запчасти Case IH SPX3310 (04-001) - FUEL TANK HOOD GROUP Suspension & Frame

1

87268619

HOOD

FUEL TANK

1шт.

2

BN303232

MOUNTING PARTS

HEADLAMP, L.H.

1шт.

3

BN303233

BRACKET

Headlamp, RH

1шт.

4

BN303231

BRACKET

Headlamp Back

2шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

6

BN300488

WASHER

M6, Flat, 8.8

8шт.

7

BN303821

RIVET

.18 x .57 Steel

10шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

9

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

6шт.

10

87268943

SUPPORT

HOOD, FUEL TANK, Start Serial: 7402

1шт.

10

87270099

SUPPORT

HOOD

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

11

BN313904

SEAL

23" OF PART 55196

1шт.

12

86528579

NUT,M8 x 1.25

2шт.
