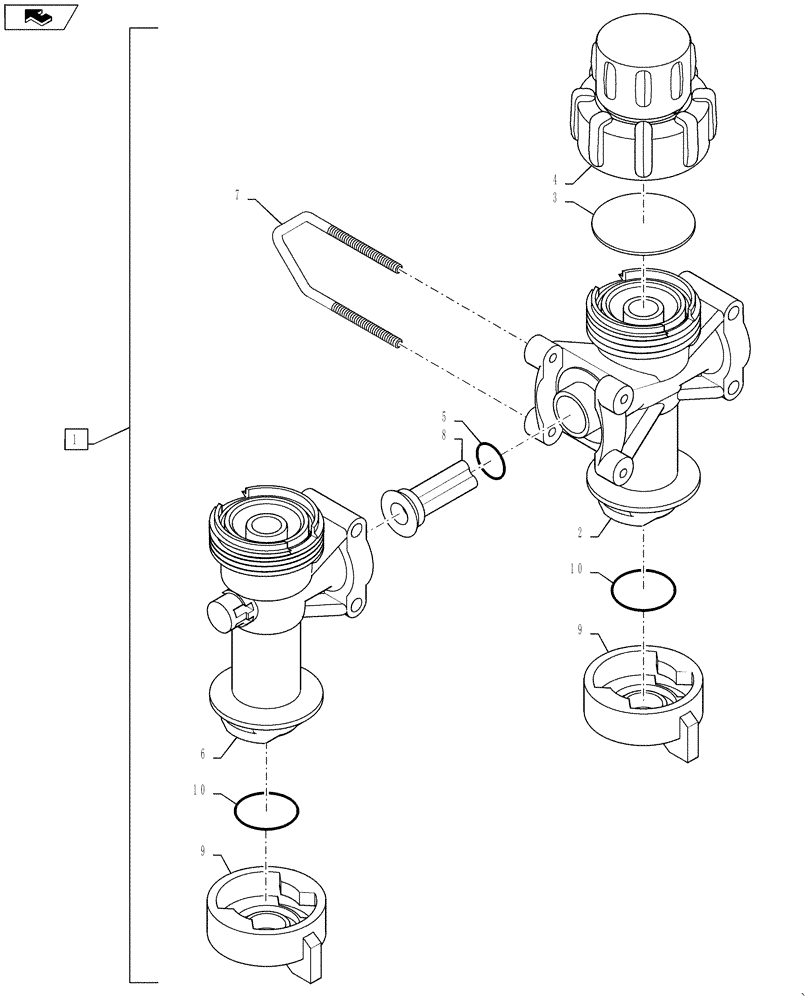

Запчасти Case IH SPX3310 (11-030) - NOZZLE, DUAL WILGER Options

1

BN325221

NOZZLE

Dual, Wilger, Incl 2 - 10

1шт.

2

84153116

BODY

Thru, Diaphragm Style

1шт.

3

84153112

DIAPHRAGM

1шт.

4

84153113

MODULE

Shut-Off Assy

1шт.

5

84153115

O-RING,0.484" ID x 0.139" Width

1шт.

6

84153114

END

Body, Diaphragm Style

1шт.

7

84153117

LOCK,U-Clip 302SS

U-Clip

1шт.

8

84157747

SCREEN,Inter-Body Strainer Assy, 80 M

Strainer Assembly, Interbody 80 Mesh

1шт.

9

84244013

PLUG,Plug,Cap-Black,w/ O-ring

Cap, W/ O-Ring

2шт.

10

8408

O-RING,13 mm x 3 mm

Nozzle Seal Combo-Jet

2шт.
