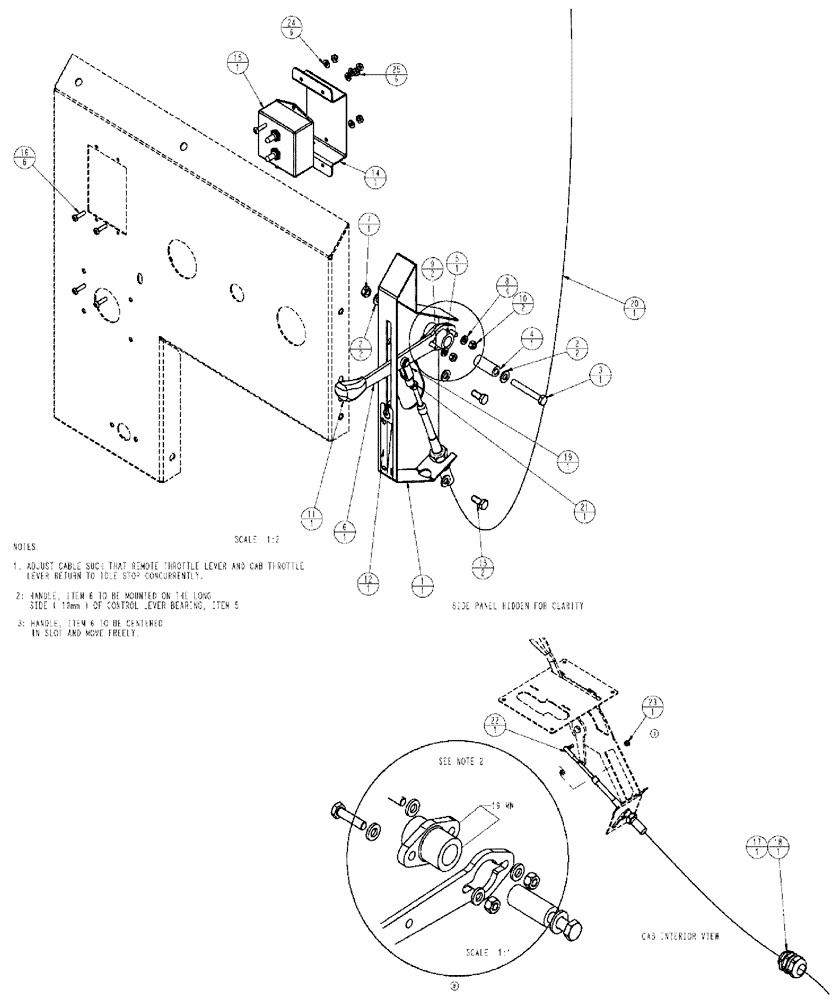

Запчасти Case IH SPX3310 (11-024) - REMOTE THROTTLE, MOUNTING Options

1

87271328

MOUNTING PLATE

REMOTE THROTTLE

1шт.

2

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

4шт.

3

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

4

87269336

BUSHING

PARK BRAKE LEVER

1шт.

5

A162299

BEARING,15.95mm ID

control lever

1шт.

6

87271331

LEVER

REMOTE THROTTLE

1шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

8

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

9

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

10

353308

NUT,M6 x 1.0, Cl 8

2шт.

11

134071A1

KNOB

Throttle Control

1шт.

12

BN323738

DECAL

EXTERNAL THROTTLE

1шт.

13

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

14

87266393

MOUNTING PLATE

Switch Assembly

1шт.

15

87272150

THROTTLE

remote, electrical, Start Serial: 20171

1шт.

See Fig. 12-021

1шт.

15

87265605

RELAY

REMOTE THROTTLE, ELEC.

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

16

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

6шт.

17

BN318043

SEAL

THRTL CABLE

1шт.

18

BN315736

LOCK NUT

LOCK, NYLON - 1" NPT

1шт.

19

BN29258

CLEVIS

Assembly With Pin

1шт.

20

87271327

CABLE

PUSH/PULL, 148" X 3"

1шт.

21

87343674

NUT

1/4"-28, G5

1шт.

22

86550597

BALL JOINT,1/4" -28 x 1

Quick Disconnect

1шт.

23

20332

LOCK NUT,#10-32, GB

1шт.

24

BN310265

WASHER

10, Stainless Steel

6шт.

25

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

6шт.

87266850

ADAPTER

2W DEU TO 2W PAC, Serial Range: 20064-20171

1шт.

Not Shown

1шт.

87267553

ADAPTER

Packard/Deutsch, Serial Range: 20064-20171

1шт.

Not Shown

1шт.
