Запчасти Case IH SPX3310 (11-021) - SEAT W/SWIVEL & BELT ASSEMBLY Options

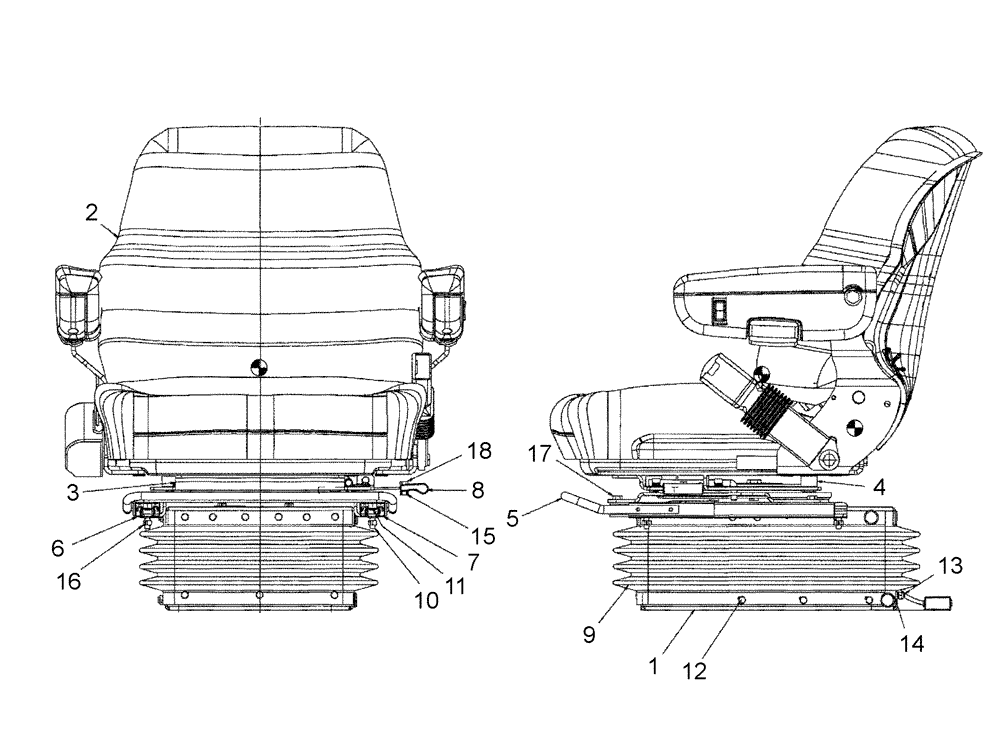

Схема запчастей Case IH SPX3310 - (11-021) - SEAT W/SWIVEL & BELT ASSEMBLY Options
10
7
9
1
12
8
6
18
13
16
4
15
5
3
11
17
2
14

Артикул

Название

Примечание

Количество

1

87037466

SUSPENSION

Air, LP With Left-hand Brackets

1шт.

2

87037463

SEAT ASSY.

SEAT TOP, SST

1шт.

3

86994166

ASSEMBLY

SWIVEL, LOW PROFILE

1шт.

4

NS

NOT SERVICED

SPACER

4шт.

5

NS

NOT SERVICED

RELEASE, SLIDE

1шт.

6

NS

NOT SERVICED

assembly, slide, locking

1шт.

7

NS

NOT SERVICED

SLIDE, LOCKING

1шт.

8

NS

NOT SERVICED

SWIVEL

1шт.

9

86502154

KIT

SUSPENSION

1шт.

10

NS

NOT SERVICED

SQUARE HEAD, 5/16-18 UNC X .75

4шт.

11

NS

NOT SERVICED

NYLOC M8 X 1.25

8шт.

12

NS

NOT SERVICED

XMAS TREE CLIP 3/16 DIA HOLE

22шт.

13

NS

NOT SERVICED

ACORN STYLE

3шт.

14

NS

NOT SERVICED

CHRISTMAS TREE CLIP

2шт.

15

NS

NOT SERVICED

CENTERLOCK 1/4-20UNC

1шт.

16

NS

NOT SERVICED

CENTERLOCK 5/16-18UNC

4шт.

17

NS

NOT SERVICED

HEX HD M8 X 1.25 16 LG.

4шт.

18

NS

NOT SERVICED

HEX HD 1/4-20UNC X .62 LG.

1шт.

Выбрано товаров: 18
