Запчасти Case IH SPX3310 (11-017) - TANK GROUP W/LIQUID PLUMBING Options

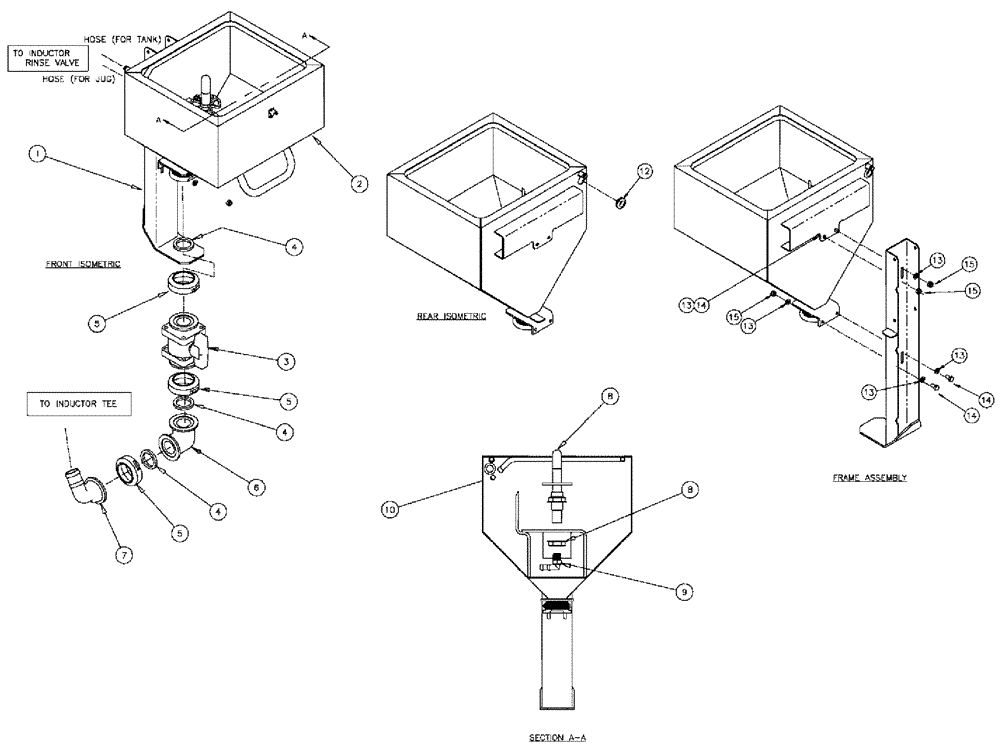

Схема запчастей Case IH SPX3310 - (11-017) - TANK GROUP W/LIQUID PLUMBING Options
15
5
9
1
13
14
15
8
12
14
4
2
13
3
5
4
10
13
8
13
4
13
6
15
7
14
5

Артикул

Название

Примечание

Количество

1

BN322941

BRACKET

MOUNT, TANK

1шт.

2

BN320983

TANK

Inductor 2

1шт.

3

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

BALL, 2" FL, W/T HNDL

1шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

5

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

6

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

1шт.

7

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

8

BN310895

VALVE

INDUCTOR JUG RINSE

1шт.

9

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

1шт.

10

BN311050

PLUG

Pipe, 1/8" poly hex

1шт.

12

BN85855

GROMMET

Lg, for 1/2" hose

1шт.

13

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

8шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

15

86528579

NUT,M8 x 1.25

4шт.

Выбрано товаров: 14
