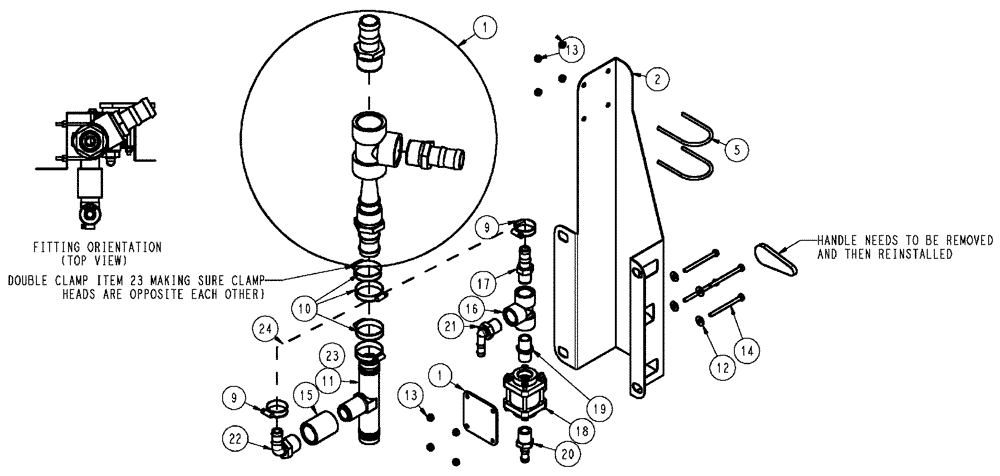

Запчасти Case IH SPX3310 (11-015) - CHEMICAL INDUCTOR VENTURI/VALVE GROUP Options

1

344404A1

MOUNTING PLATE

valve holder

1шт.

87270968

VENTURI

assembly

1шт.

See Fig. 11-016

1шт.

2

87268597

BRACKET

VENTURI/VALVE

1шт.

5

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

9

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

10

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.

11

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

1шт.

12

BN50138

WASHER,1/4", SS

4шт.

13

BN55359

LOCK NUT,1/4"-20, SS

8шт.

14

BN55367

BOLT

1/4-20 X 3-1/4", Stainless Steel

4шт.

15

BN66968

COUPLING

1" Poly

1шт.

16

BN73560

TEE

.75FP, PP

1шт.

17

BN73561

FITTING

STR, .75HB .75HB, PP

1шт.

18

BN73564

VALVE

3/4" Ball Poly 2 Way, Full, PP

1шт.

19

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

20

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

1шт.

21

BN73578

FITTING

90, .75MP .50HB, PP

1шт.

22

BN73684

ELBOW

90° 1" MPT x 3/4" Barb, PP

1шт.

23

BN324833

HOSE

Kanaflex

1шт.

24

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

1шт.
