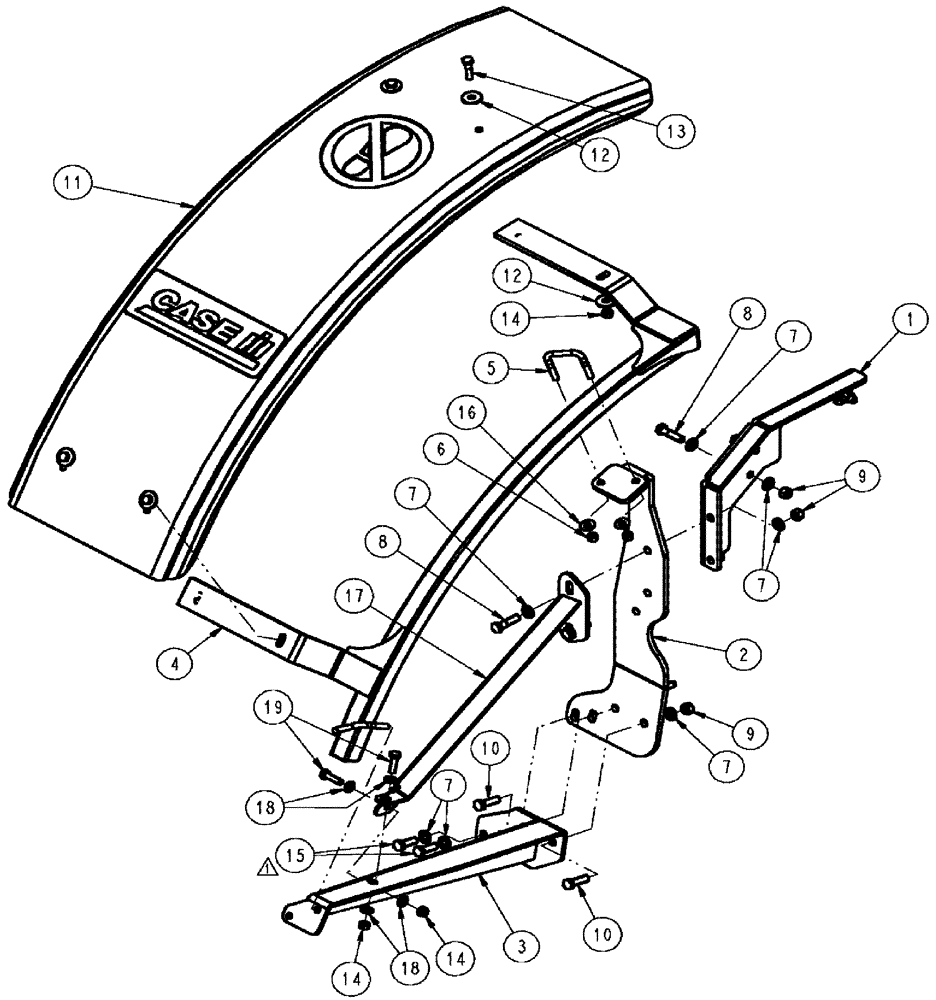

Запчасти Case IH SPX3310 (11-006) - FENDER GROUP, L.H. REAR Options

1

86986706

BRACKET

Mount, Fender, LH

1шт.

2

87268333

SUPPORT

Mount, Fender LH

1шт.

3

87268370

BRACKET

Mount, Fender, Lower, LH

1шт.

4

87269911

FRAME

LH rear render

1шт.

5

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

2шт.

6

87343970

NUT,3/8"-16, G8, DOR

4шт.

7

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

14шт.

8

86980424

BOLT,Hex, M12 x 1.75 x 45, Cl 8.8, DOR

5шт.

9

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

7шт.

10

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

11

87665203

FENDER

short, holes

1шт.

12

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

0.406 x 1.125 x 0.134 HTS DOR HDN

8шт.

13

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

15

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

M12-1.75 X 35, HH, 8.8 DOR

2шт.

16

1994980C1

BELLEVILLE WASHER

Belleville, M10

4шт.

17

87268326

SUPPORT

Cross Brace Fender LH

1шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

19

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.
