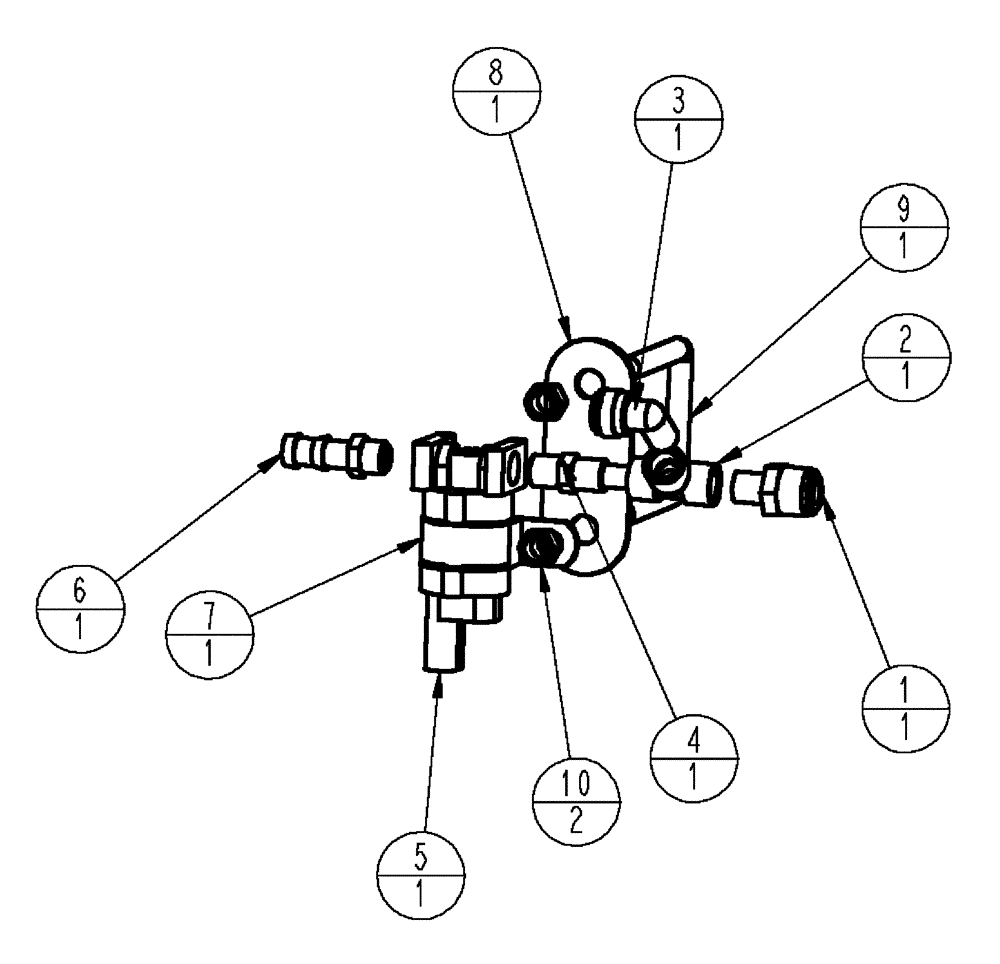

Запчасти Case IH SPX3310 (09-067) - VENTURI, SOLENOID ASSY, RH Liquid Plumbing

1

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

2

86986807

TEE

1/4" Poly

1шт.

3

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

4

87269827

VENTURI

Foamer Assembly Poly

1шт.

5

BN307938

VALVE

SOLENOID, 1/4 NPT

1шт.

6

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

1шт.

7

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

8

87272755

SPACER

3 x 38 x 100, Poly

1шт.

9

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

1шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.
