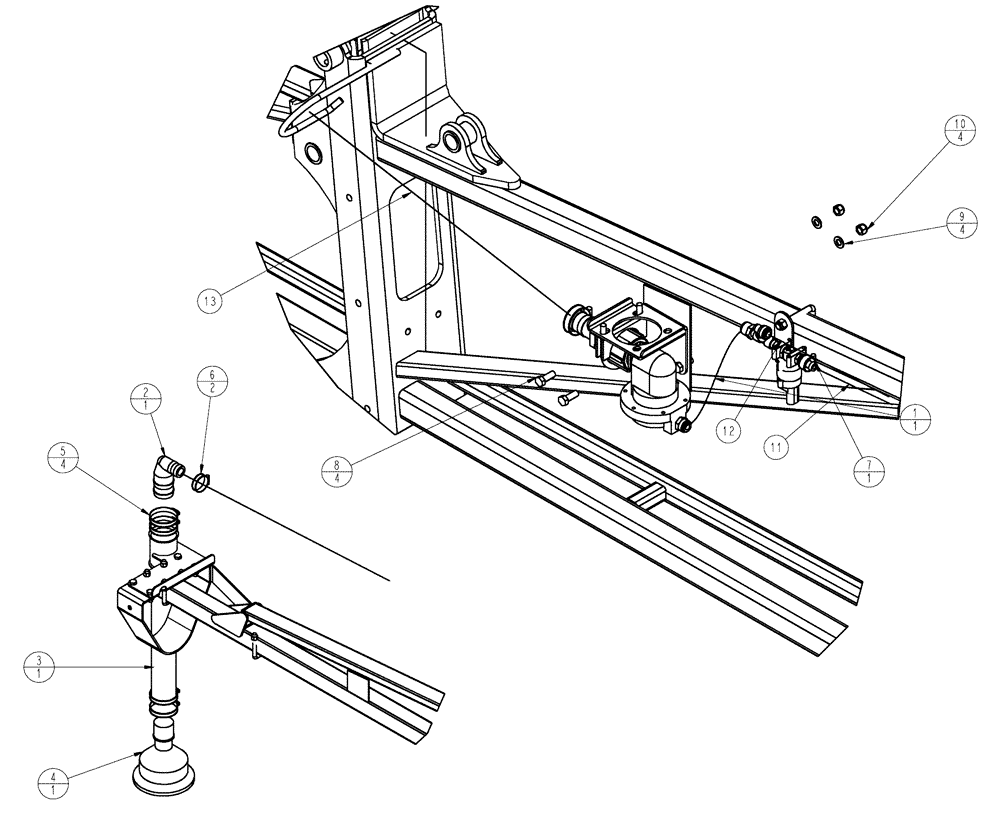

Запчасти Case IH SPX3310 (09-057) - FOAM DROP GROUP, L.H. 80 Liquid Plumbing

1

87711942

CHAMBER GRP, LH FOAM MIX

1шт.

See Fig. 09-058

1шт.

2

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

1шт.

3

87266611

HOSE

Foam Drop, 2" x 16"

1шт.

4

BN2403252

BELL

Foam Marker

1шт.

5

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

6

BN320156

HOSE CLAMP

#24, Stainless Steel

4шт.

7

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

8

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

9

BN50146

WASHER,3/8", Stainless

4шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

11

87268240

HOSE,0.50" ID

EPDM

1шт.

12

87268239

TUBE,0.375" DIA

Synflex, 3/8" x 33'

1шт.

13

BN310394

HOSE,1.31" ID

1-1/4" Suction

1шт.
