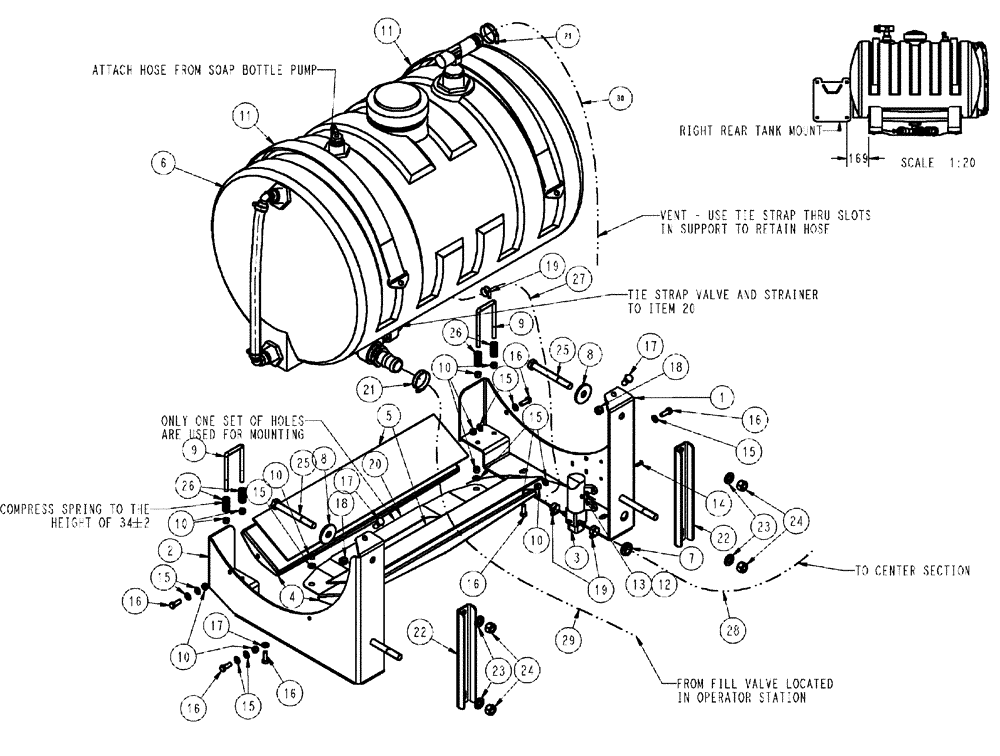

Запчасти Case IH SPX3310 (09-052) - FOAM TANK GROUP Liquid Plumbing

1

343434A1

SUPPORT

Cradle, Foamer Tank Rear

1шт.

2

343439A1

SUPPORT

Cradle, Foamer Tank Front

1шт.

3

87727677

PUMP,12V

Diaphragm, 1 GPM, 12V, Foam Transfer

1шт.

4

87265766

SUPPORT

Foam Tank

2шт.

5

87265767

RUBBER STRIP

694mm Long x 152mm Wide x 3mm Thick

2шт.

6

NS

NOT SERVICED

Group, Foam Tank Plumbing, Start Serial: 20002

1шт.

See Fig. 09-053

1шт.

7

248-2178

GROMMET,3/4" ID x 1 1/16" Groove Dia

1шт.

8

87529305

WASHER,17.5mm ID x 56mm OD x 5mm Thk

17.5 x 56 x 5 mm CST DOR

4шт.

9

BN305434

U-BOLT

BOLT "U" 3/8 x 2 x 4.5

2шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

11

343448A1

STRAP

2" Nylon web, assembly

2шт.

12

BN310265

WASHER

10, Stainless Steel

4шт.

13

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

14

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

15

BN50146

WASHER,3/8", Stainless

12шт.

16

BN50254

BOLT,3/8"-16 x 1", Stainless

6шт.

17

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2"-13 x 1, Stainless Steel

2шт.

18

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

2шт.

19

BN324022

HOSE CLAMP

#8, Stainless Steel

7шт.

20

87265768

SUPPORT

Plumbing, Foam Tank

1шт.

21

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

22

87269940

PLATE

Mount, Support

2шт.

23

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

4шт.

24

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

25

87341861

BOLT,Hex, M16 x 140mm, Cl 10.9

Hex, M16 x 140 CL10.9 DOR

4шт.

26

BN300266

SPRING

4шт.

27

344410A1

HOSE

3/8" X 6.5", CLEAR

1шт.

28

342071A1

HOSE

3/8" X 175" CLEAR

1шт.

29

BN318856

HOSE,1.50" ID x 95.00"

Kanaflex

1шт.

30

BN318858

HOSE,1.50" ID x 38.00"

Kanaflex

1шт.
