(09-051) - HAND PUMP STATION GROUP - BEFORE SERIAL #20002

Запчасти Case IH SPX3310 (09-051) - HAND PUMP STATION GROUP - BEFORE SERIAL #20002 Liquid Plumbing

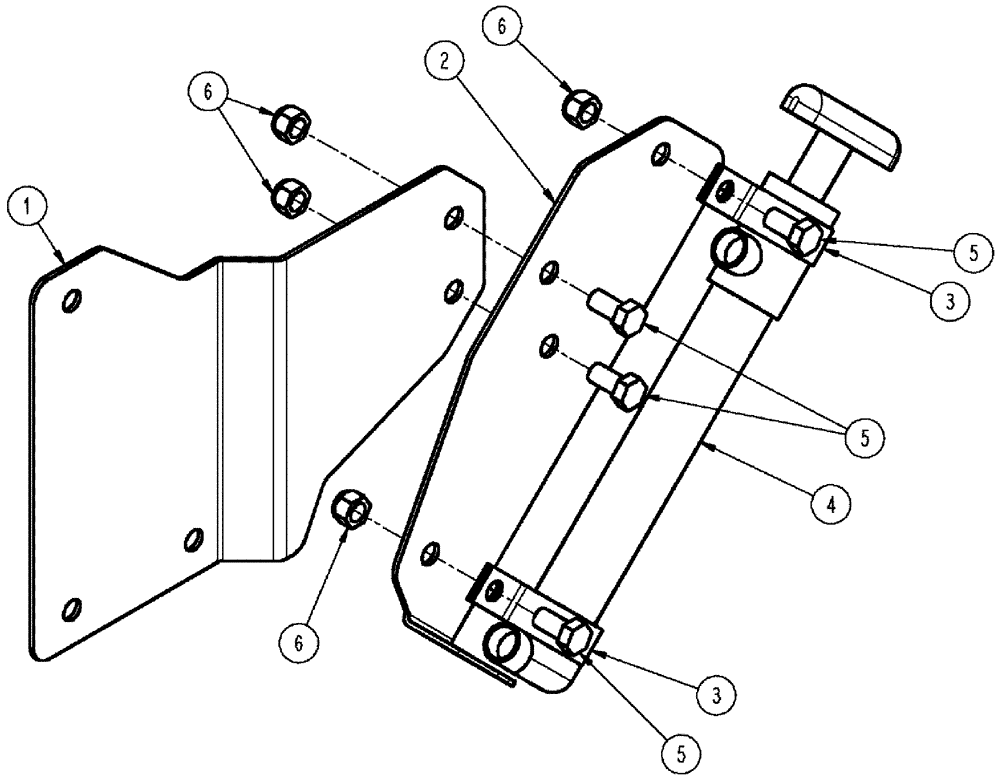

Схема запчастей Case IH SPX3310 - (09-051) - HAND PUMP STATION GROUP - BEFORE SERIAL #20002 Liquid Plumbing
5
5
6
6
6
3
3
4
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87269942

BRACKET, SUPPORTING

SOAP PUMP

1шт.

2

BN325230

BRACKET

MOUNT, HAND PUMP

1шт.

3

BN325890

CLAMP

VINYL COATED 1-9/16

2шт.

4

BN325219

PUMP

HAND, SOAP TANK

1шт.

5

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.
