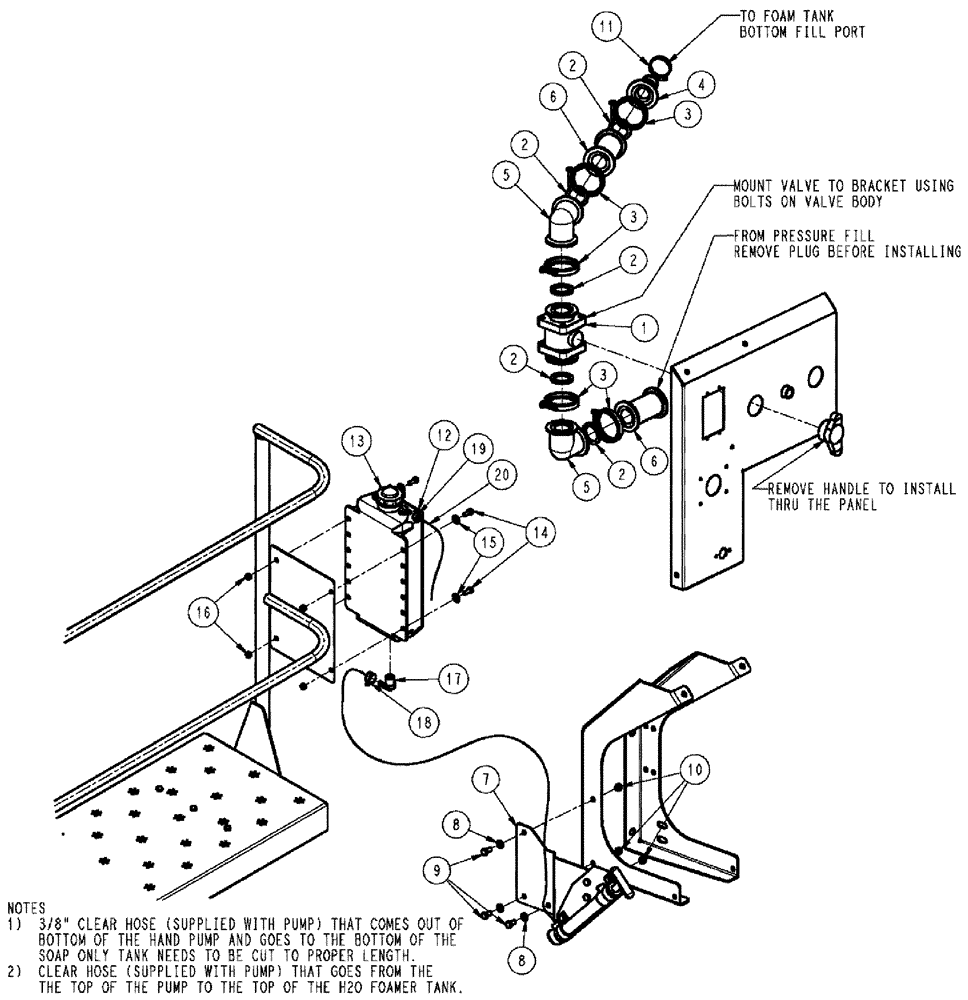

Запчасти Case IH SPX3310 (09-049) - FOAMER STATION GROUP - BEFORE SERIAL #20002 Liquid Plumbing

1

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

BALL, 2" FL, W/T HNDL

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

5шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

5шт.

4

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

5

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

2шт.

6

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

2шт.

7

NS

NOT SERVICED

Group, Hand Pump Station, Serial Range: -20002

1шт.

See Fig. 09-051

1шт.

8

BN50146

WASHER,3/8", Stainless

3шт.

9

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

3шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

11

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

12

BN322944

TANK

6 QT, POLY, NATURAL

1шт.

13

86507190

CAP

Coolant Recovery Bottle

1шт.

14

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

15

BN50142

WASHER,5/16", Stainless Steel

4шт.

16

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

17

BN325981

ELBOW

1/2" MPT x 3/8" Hose Barb, Poly

1шт.

18

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

19

BN310450

HOSE CLAMP

#3, Stainless Steel

1шт.

20

BN324759

HOSE,0.25" ID x 17.00"

EPDM

1шт.
