Запчасти Case IH SPX3310 (09-048) - FOAMER STATION GROUP - SERIAL #20002 AND LATER Liquid Plumbing

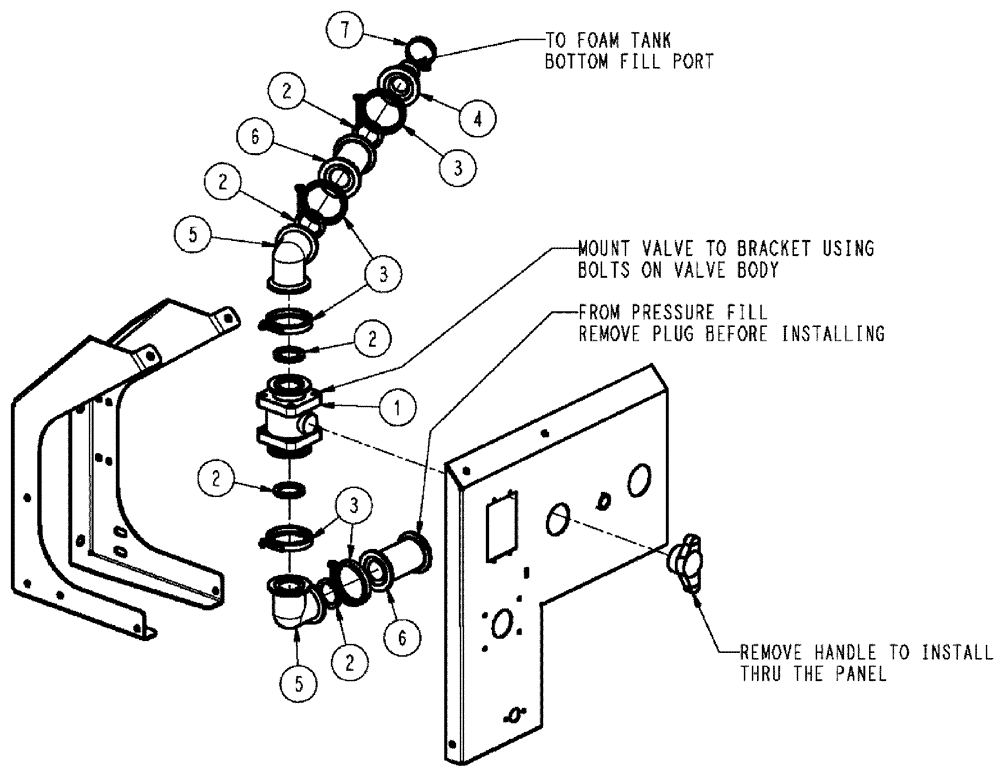

Схема запчастей Case IH SPX3310 - (09-048) - FOAMER STATION GROUP - SERIAL #20002 AND LATER Liquid Plumbing
2
4
6
2
2
5
7
3
5
1
2
3
3
6
2

Артикул

Название

Примечание

Количество

1

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

BALL, 2" FL, W/T HNDL

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

5шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

5шт.

4

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

5

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

2шт.

6

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

2шт.

7

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

Выбрано товаров: 7
