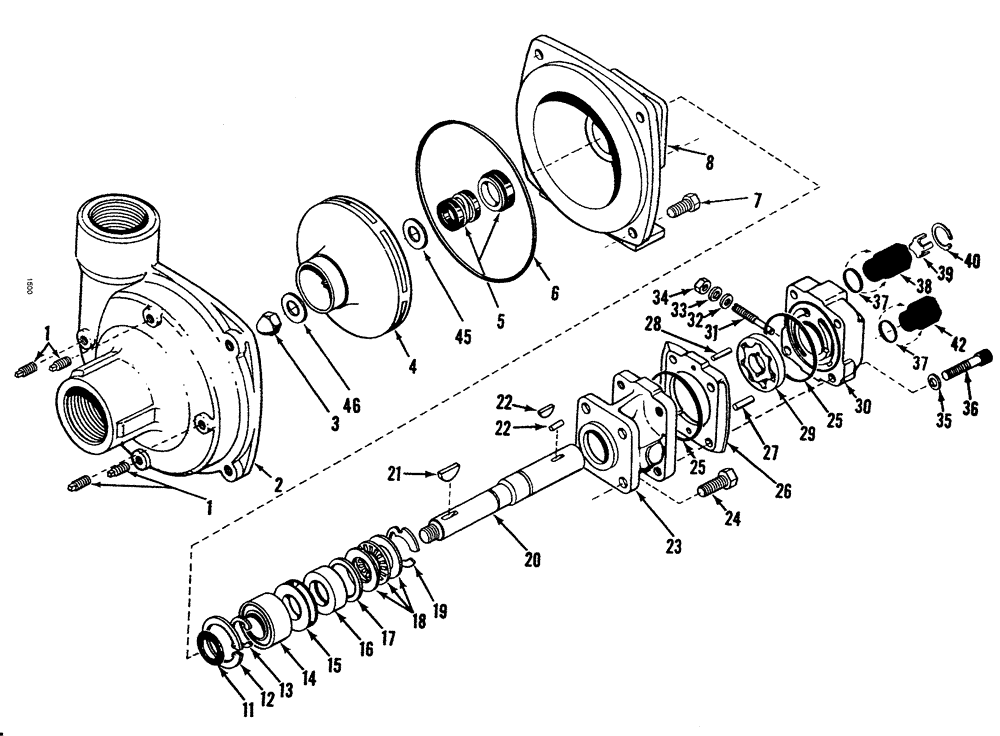

Запчасти Case IH SPX3310 (09-047) - PRODUCT PUMP Liquid Plumbing
№
Артикул
Название
Примечание
Количество
344030A1
PUMP
Product, Complete
1шт.
1
NS
NOT SERVICED
PLUG, drain/vent
4шт.
2
NS
NOT SERVICED
PUMP casing (volute)
1шт.
3
4199
NUT
NUT, impeller
1шт.
4
344031A1
IMPELLER
IMPELLER (cast iron)
1шт.
5
4197
SEAL
SEAL, mechanical (viton)
1шт.
6
87577652
O-RING
0-RING
1шт.
7
84270010
BOLT
CAPSCREW, hex head
4шт.
8
4192
FLANGE
FLANGE, mounting
1шт.
11
4194
RING
RING, slinger
1шт.
12
BN98259
RING
RING, retaining
1шт.
13
6057
SNAP RING
RING, snap
1шт.
14
NS
NOT SERVICED
BEARING, ball
1шт.
15
NS
NOT SERVICED
SPACER
1шт.
16
NS
NOT SERVICED
SEAL, shaft
1шт.
17
NS
NOT SERVICED
SEAL spacer
1шт.
18
87577677
BEARING ASSY
THRUST BRG. ASSY-CONSISTS OF: (1) THRUST BRG. & (2) THRUST BRG. RACES
1шт.
19
87578620
SNAP RING
RING, snap
1шт.
20
84187261
SHAFT
SHAFT 7" long
1шт.
21
6059
KEY
KEY, woodruff
1шт.
22
6060
ROLL PIN
PIN, roll
1шт.
23
84364089
BODY
MOTOR BODY, front (Includes main bearing)
1шт.
24
84270018
BOLT
CAPSCREW, hex head
4шт.
25
NS
NOT SERVICED
O-RING
2шт.
26
84174339
COUPLING
GEROTOR housing 5/8" wide
1шт.
27
84270023
PIN
PIN, dowel
1шт.
28
84270022
PIN
PIN, dowel
1шт.
29
84174340
ROTOR
GEROTOR
1шт.
30
9572
END PLATE
PLATE, motor end (Includes main bearing)
1шт.
31
87577683
VALVE STEM
SCREW, bypass adjusting
1шт.
32
NS
NOT SERVICED
GASKET
1шт.
33
NS
NOT SERVICED
WASHER
1шт.
34
NS
NOT SERVICED
NUT, lock
1шт.
35
84270031
WASHER
WASHER
4шт.
36
NS
NOT SERVICED
CAPSCREW
4шт.
37
NS
NOT SERVICED
0-RING
2шт.
38
NS
NOT SERVICED
ADAPTER, tank port
1шт.
39
NS
NOT SERVICED
POPPET
1шт.
40
NS
NOT SERVICED
RING, retaining
1шт.
42
NS
NOT SERVICED
ADAPTER, pressure port
1шт.
45
NS
NOT SERVICED
GASKET, rubber
1шт.
46
NS
NOT SERVICED
WASHER
1шт.
48
NS
NOT SERVICED
SERVICE PARTS
1шт.
BN311826
SEAL KIT
KIT, Pump Seal (Incl. #5, #6, #45)
1шт.
Indicates service parts for above ref. number
1шт.
BN311827
SEAL KIT
Shaft (Incl. #14, #16, #32, #33, #25-Qty 2, #37-Qty 2)
1шт.
Indicates service parts for above ref. number
1шт.
BN311825
HYDRAULIC MOTOR
HM5, Complete Product Pump Motor
1шт.
Indicates service parts for above ref. number
1шт.
Выбрано товаров: 49
