Запчасти Case IH SPX3310 (09-041) - NOZZLE SPACING GROUP, 5 SECTION CTR, 20" Liquid Plumbing

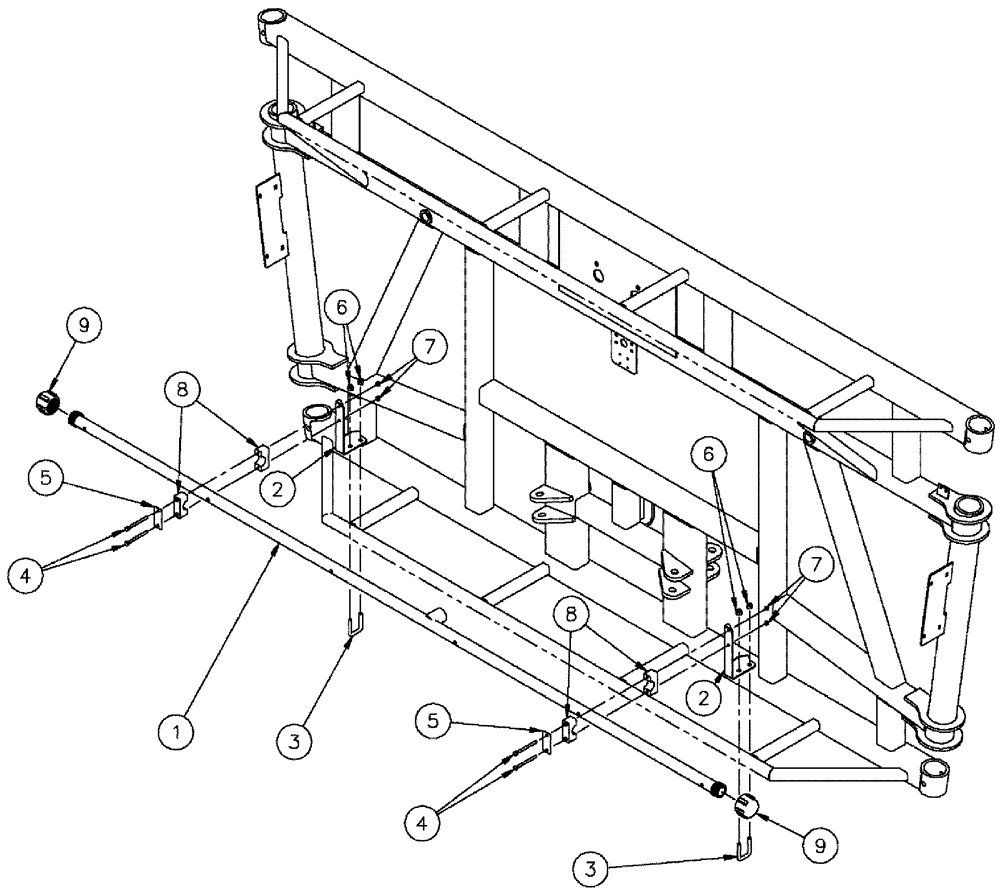

Схема запчастей Case IH SPX3310 - (09-041) - NOZZLE SPACING GROUP, 5 SECTION CTR, 20" Liquid Plumbing
2
3
6
3
5
4
6
7
7
5
8
9
8
1
4
9
2

Артикул

Название

Примечание

Количество

1

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

1шт.

2

BN323957

BRACKET

MOUNT, SPRAY BAR

2шт.

3

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

2шт.

4

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

4шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

2шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

7

BN55359

LOCK NUT,1/4"-20, SS

4шт.

8

BN67054

CLAMP

1.315" OD

2шт.

9

BN73606

CAP

1" NPT, Poly Pipe

2шт.

Выбрано товаров: 9
