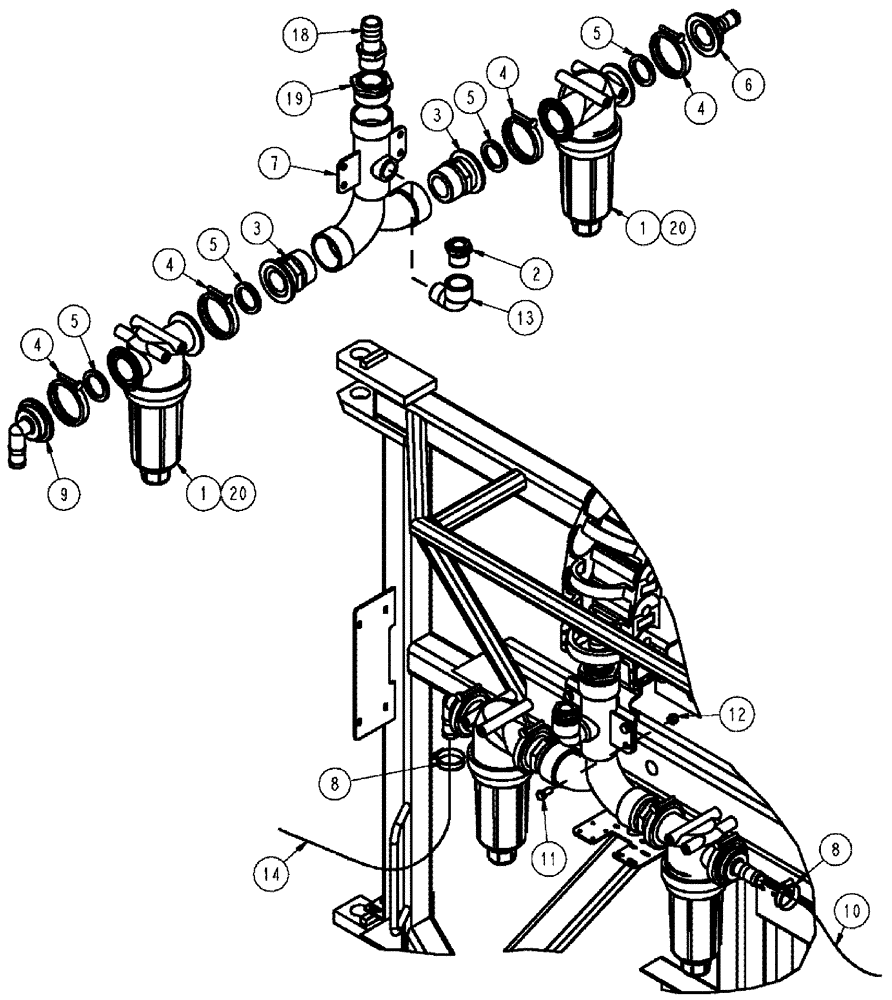

Запчасти Case IH SPX3310 (09-031) - PLUMBING CENTER, 6 SECTION LO Liquid Plumbing

1

87265489

FILTER STRAINER

Strainer, 2" FLS

2шт.

2

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

3

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

2шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

4шт.

5

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

4шт.

6

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

1шт.

7

BN319213

MANIFOLD,2" Female NPT x 2" Female NPT x 2" Female NPT, Poly

3-WAY

1шт.

8

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

9

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" Hose Barb

1шт.

10

BN322768

HOSE,1.00" ID x 157.00"

EPDM

1шт.

11

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

12

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

13

BN53682

ELBOW

90, 1.0 MP 1.0 FP, PP

1шт.

14

BN53913

HOSE

1" IDEPDM X 88"

1шт.

18

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

19

BN73755

BUSHING,2" Male NPT x 1-1/4" Female NPT, Poly

reducer 2 x 1.25

1шт.

20

87265492

SCREEN,80 Mesh, SST, Blue

80 Mesh, SS, Blue

2шт.
