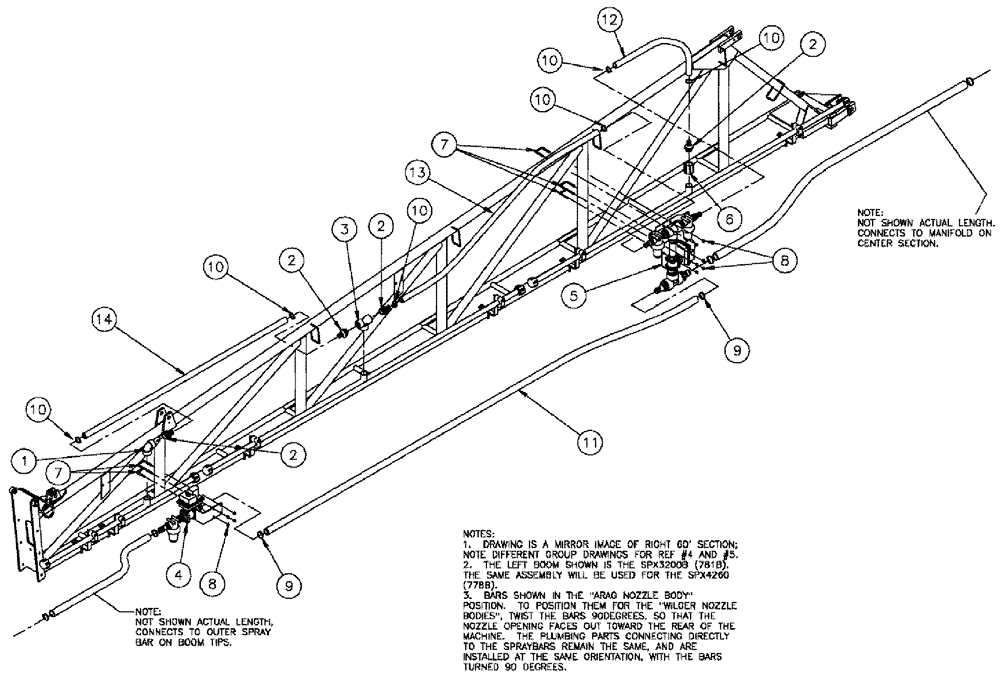

Запчасти Case IH SPX3310 (09-021) - BOOM PLUMBING GROUP, 5 SECTION MID, L.H. Liquid Plumbing

1

BN313202

ELBOW

1-1/4" NPT 90 DEG

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

4шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

BN321452

VALVE

PLBG, L.H, 5 & 6 SECT

1шт.

See Fig. 09-027

1шт.

4

BN321453

VALVE

PLBG, R.H, 5 & 6 SECT

1шт.

See Fig. 09-027

1шт.

5

BN321454

VALVE

PLBG, L.H, 5 SECT

1шт.

See Fig. 09-025

1шт.

5

BN321455

VALVE

PLBG, R.H, 5 SECT

1шт.

See Fig. 09-025

1шт.

6

BN305269

COUPLING

1-1/4" POLY

1шт.

7

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

5шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

9

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

10

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

11

BN321478

HOSE,31.75mm ID x 3962.4mm L

EPDM

1шт.

12

BN53850

HOSE

EPDM 1" ID X 36"

1шт.

13

BN321476

HOSE,1.00" ID x 79.00"

EPDM

1шт.

14

BN320876

HOSE,1.00" ID x 75.00"

EPDM

1шт.
