Запчасти Case IH SPX3310 (09-020) - THROTTLE VALVE PLUMBING Liquid Plumbing

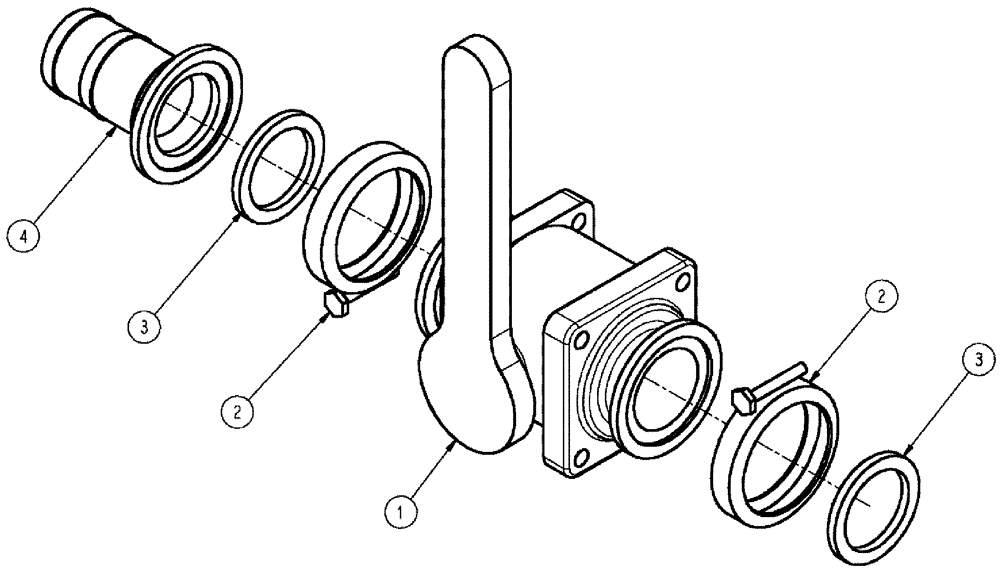

Схема запчастей Case IH SPX3310 - (09-020) - THROTTLE VALVE PLUMBING Liquid Plumbing
4
2
3
2
3
1

Артикул

Название

Примечание

Количество

1

87268158

VALVE

2" Full Port Manifold, Throttle

1шт.

2

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

4

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

Выбрано товаров: 4
