Запчасти Case IH SPX3310 (09-019) - STRAINER GROUP, THROTTLE VALVE Liquid Plumbing

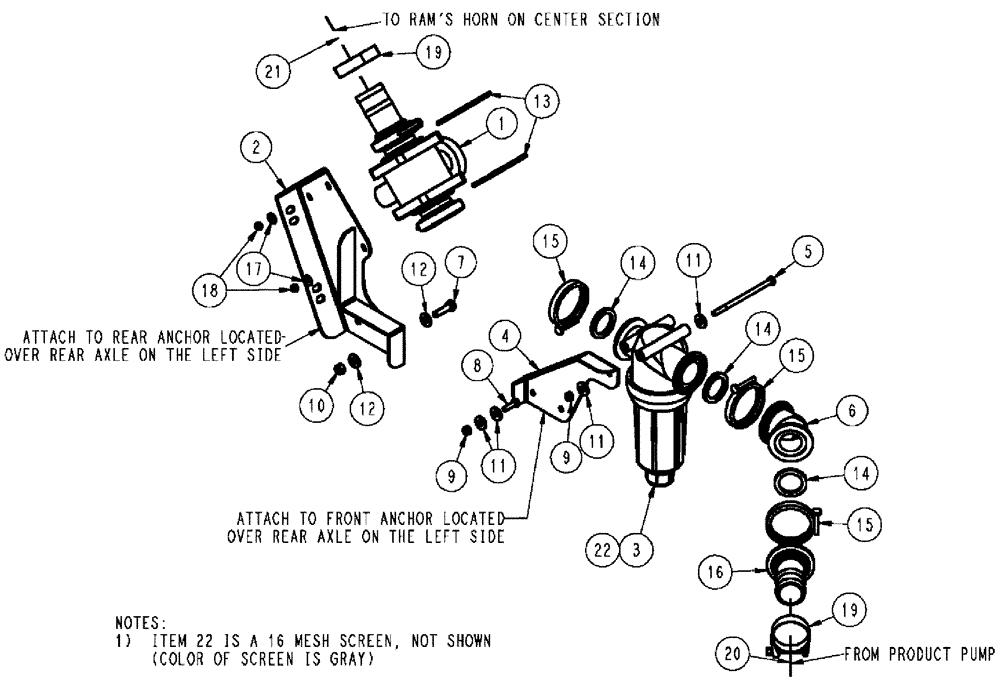

Схема запчастей Case IH SPX3310 - (09-019) - STRAINER GROUP, THROTTLE VALVE Liquid Plumbing
15
14
22
12
4
17
11
21
3
18
11
1
8
20
9
5
6
16
15
15
12
14
2
7
11
19
13
14
19
10
9

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Plumbing, Throttle Valve

1шт.

See Fig. 09-020

1шт.

2

87269842

BRACKET

THROTTLE

1шт.

3

87265489

FILTER STRAINER

Strainer, 2" FLS

1шт.

See Fig. 09-035

1шт.

4

87268608

BRACKET

Mount, Strainer

1шт.

5

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

6

87265590

COUPLING,2" x 2" 45 Degree Flange

45º, 2" Flange, Poly

1шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

9

86528579

NUT,M8 x 1.25

4шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

11

BN300506

WASHER

M8, Stainless Steel

8шт.

12

BN300507

WASHER

M10, Flat, SS

4шт.

13

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

14

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

15

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

16

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

17

BN50138

WASHER,1/4", SS

4шт.

18

BN55359

LOCK NUT,1/4"-20, SS

4шт.

19

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

4шт.

20

BN316635

HOSE,2.00" ID x 86.00"

Sparge

1шт.

21

BN53825

HOSE

2" ID X 10 FT-SUCTION

1шт.

22

87268604

SCREEN,16 Mesh, SST, Gray

16 Mesh, SS, Gray

1шт.

Выбрано товаров: 24
