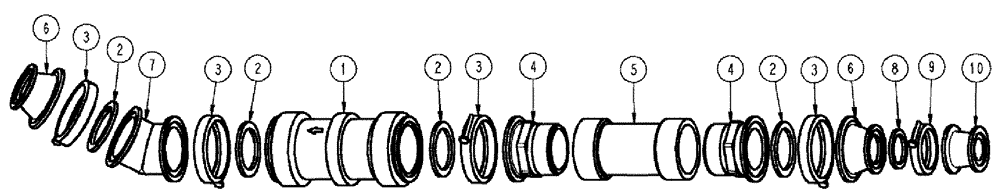

Запчасти Case IH SPX3310 (09-017) - FLOWMETER PLUMBING, HIGH, STD Liquid Plumbing

1

87265852

METER

Flow RFM200 HP With Restrictor, With Deutsch

1шт.

See Fig. 09-018

1шт.

BN321302

METER

RFM200, 2X, W/RSTR

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

2

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

4шт.

3

BN321074

CLAMP,101.6mm

Manifold, 3"

4шт.

4

BN321078

ADAPTER

Manifold, 3" x 3" Male

2шт.

5

87268164

PIPE

HIGH FLOW

1шт.

6

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" FP Flange

2шт.

7

87266599

COUPLING,3" x 3" 45 Degree Full Port Flange

Manifold 3" x 45º

1шт.

8

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

9

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

10

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Full Port Flange X 2" Flange

1шт.
