Запчасти Case IH SPX3310 (09-015) - STD FLOWMETER PLUMBING, STD PORT Liquid Plumbing

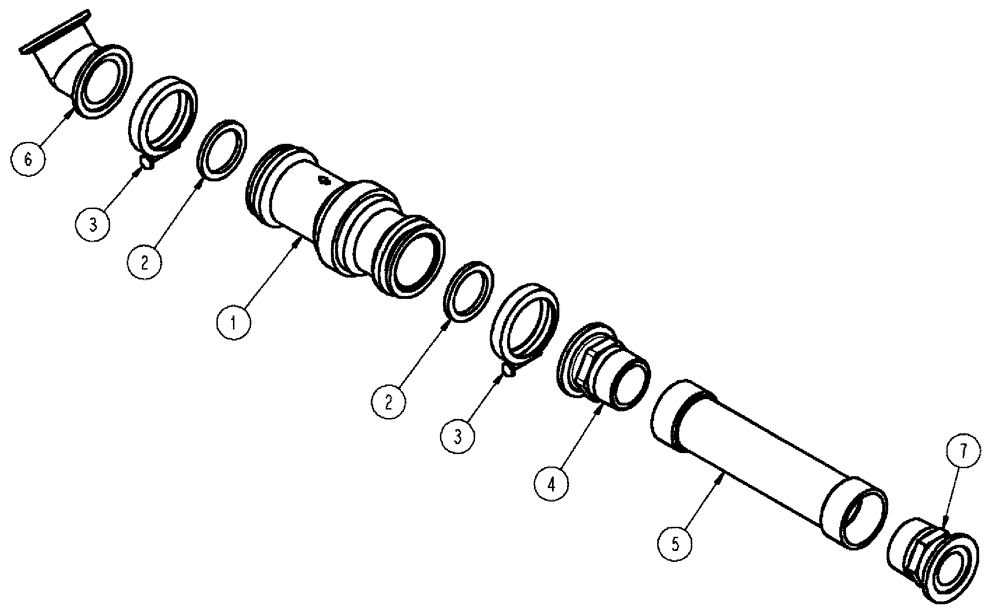

Схема запчастей Case IH SPX3310 - (09-015) - STD FLOWMETER PLUMBING, STD PORT Liquid Plumbing
7
5
1
6
4
2
2
3
3

Артикул

Название

Примечание

Количество

1

87265851

METER

Flow, RFM-100, H/P, Start Serial: 20002

1шт.

See Fig. 09-016

1шт.

BN321304

METER

RFM100, 2X PULSE

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

2

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

3

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

4

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

5

87268152

PIPE

Standard

1шт.

6

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

Manifold 2" x 45º FP

1шт.

7

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.

Выбрано товаров: 10
