(09-013) - CENTER BOOM PLUMBING GROUP, 5 SECTION

Запчасти Case IH SPX3310 (09-013) - CENTER BOOM PLUMBING GROUP, 5 SECTION Liquid Plumbing

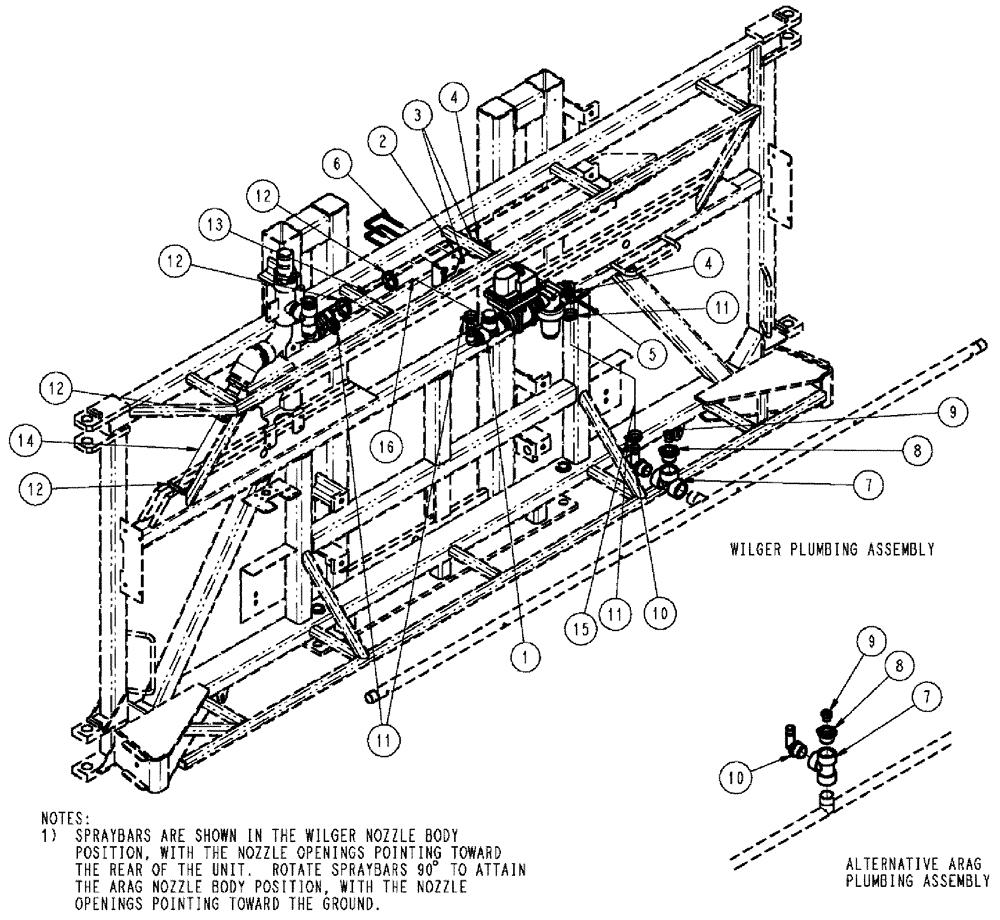

Схема запчастей Case IH SPX3310 - (09-013) - CENTER BOOM PLUMBING GROUP, 5 SECTION Liquid Plumbing
7
15
8
4
6
10
10
12
3
7
11
2
12
13
8
9
14
11
11
12
5
4
1
9
16
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89269388

VALVE GRP, 5 SECTION

1шт.

See Fig. 09-014

1шт.

2

87269390

MOUNTING PLATE

VALVE-STRAINER

1шт.

3

280736

NUT,5/16"-18, GC

5шт.

4

BN50142

WASHER,5/16", Stainless Steel

2шт.

5

BN320109

BOLT,5/16"-18 X 3.50", Stainless

1шт.

6

BN313492

U-BOLT

5/16 X 2.56 INSID

2шт.

7

BN73662

TEE

1-1/4", Poly

1шт.

8

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

9

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

10

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb, Poly

1шт.

11

BN310447

HOSE CLAMP

#20, Stainless Steel

4шт.

12

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.

13

BN325638

HOSE,1.50" ID x 186.00"

EPDM

1шт.

14

342076A1

HOSE

1.5" x 147", EPDM

1шт.

15

BN66859

HOSE

1" EPDM X 23.00"

1шт.

16

BN320882

1" X 27", EPDM

1шт.
