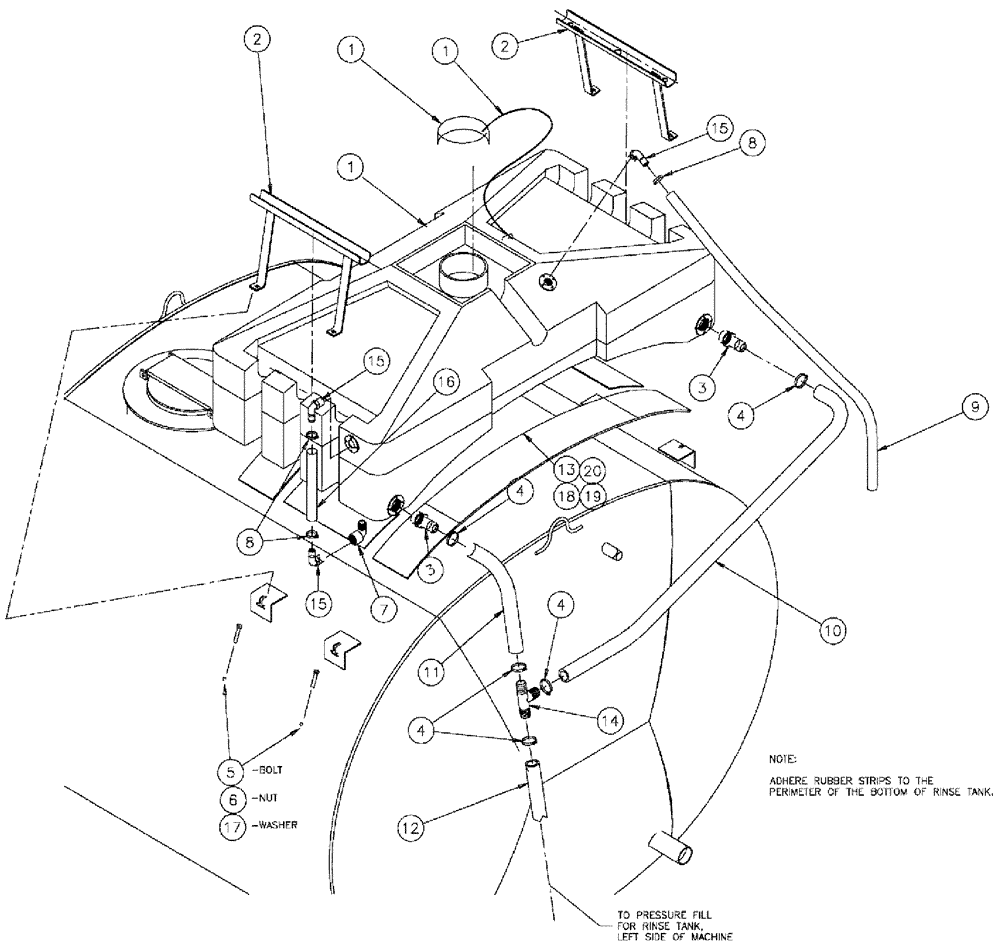

Запчасти Case IH SPX3310 (09-011) - RINSE TANK GROUP Liquid Plumbing

1

BN321007

TANK

top mount, eliptical, 70 gallon

1шт.

BN314276

COVER

(35 GAL POLY TANK)

1шт.

Service Parts for Ref. 1

1шт.

2

BN323384

BRACKET

HOLDDOWN, RINS TNK

2шт.

3

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

2шт.

4

BN310447

HOSE CLAMP

#20, Stainless Steel

5шт.

5

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

7

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

1шт.

8

BN310446

HOSE CLAMP

#12, Stainless Steel

3шт.

9

BN320451

HOSE,0.75" ID x 81.50"

1шт.

10

BN324916

HOSE,1.25" ID x 57.00"

Type K

1шт.

11

BN324914

HOSE,1.25" ID x 19.00"

Type K

1шт.

12

342070A1

HOSE

1.25" X 72", TYPE K

1шт.

13

87380012

RUBBER STRIP

Mat, .51 X 6 X 1/8

2шт.

14

BN317579

TEE

Hose Barb, 1 1/4"

1шт.

15

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

3шт.

16

BN322785

FLEXIBLE HOSE,0.75" ID x 11.00"

Clear

1шт.

17

BN300507

WASHER

M10, Flat, SS

8шт.

18

BN323330

FOAM INSULATION

RINSE TANK

2шт.

19

BN324583

FOAM

2шт.

20

87380016

RUBBER STRIP

Mat, .14 x 6 x 1/8

2шт.
