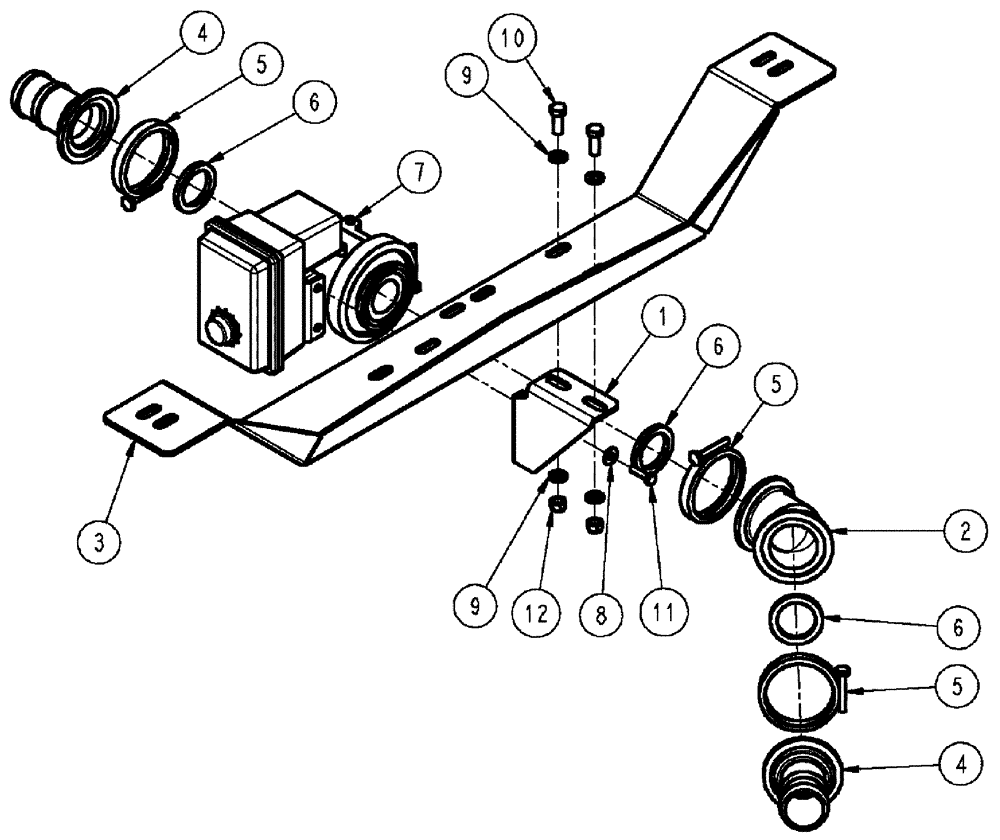

Запчасти Case IH SPX3310 (09-009) - SPARGE VALVE GROUP Liquid Plumbing

1

87265566

BRACKET

SPARGE VALVE

1шт.

2

87265590

COUPLING,2" x 2" 45 Degree Flange

45º, 2" Flange, Poly

1шт.

3

87268593

BRACKET, SUPPORTING

PLUMBING

1шт.

4

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

2шт.

5

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

6

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

7

BN324054

VALVE,2" Full Port Flange x 2" Full Port Flange

1-1/2" B, Electric

1шт.

8

BN50138

WASHER,1/4", SS

2шт.

9

BN50146

WASHER,3/8", Stainless

8шт.

10

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

11

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

2шт.

12

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.
