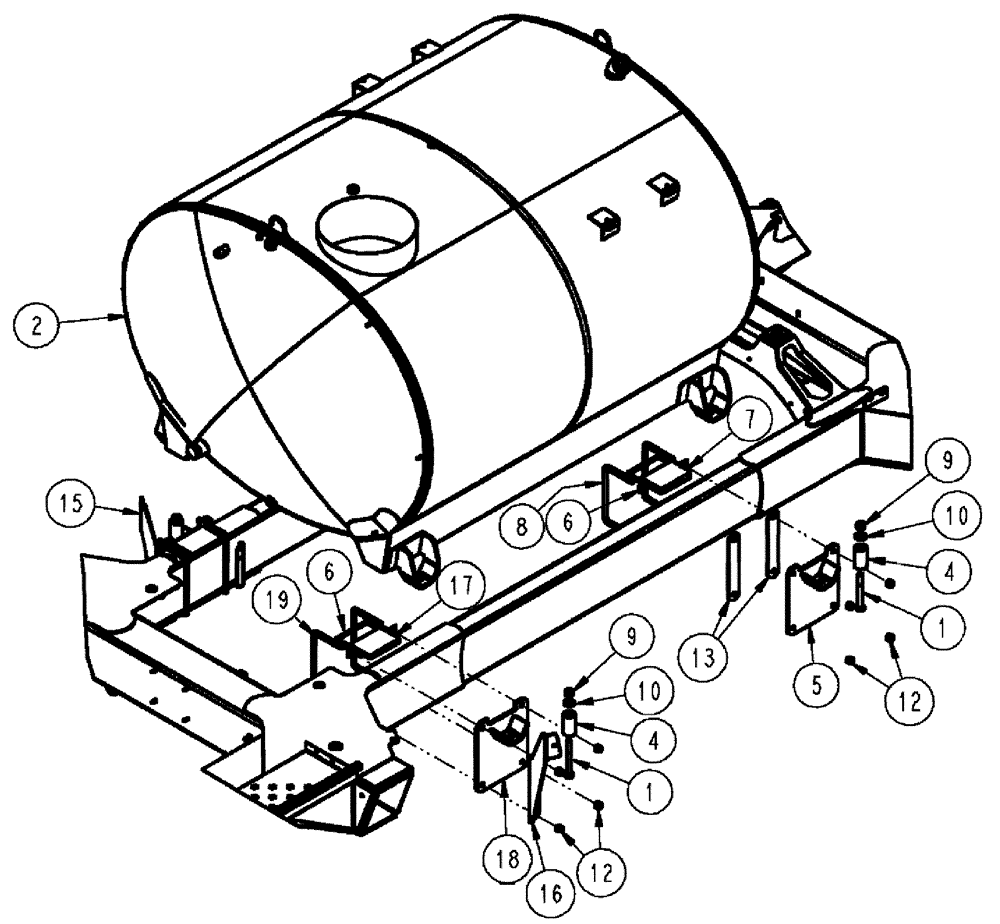

Запчасти Case IH SPX3310 (09-004) - TANK MOUNTING GROUP Liquid Plumbing

1

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

4шт.

2

87268411

TANK

1000 GAL, CLASS III

1шт.

4

BN312850

SPRING

1" ID x 4" Lg-Die

4шт.

5

87269351

SUPPORT

Mount, Rear Tank

4шт.

6

343010A1

STRAP

harness, tank pad 778D

4шт.

7

343009A1

PAD

pad, mount, tank 778D

4шт.

8

343924A1

U-BOLT

U, M16-2, 150 x 256

8шт.

9

264031

NUT,M20 x 2.5, Cl 10

4шт.

10

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

4шт.

12

412066

NUT,M16 x 2.0, Cl 8

16шт.

13

86986975

SPACER

10" U-Bolt

6шт.

15

87268744

BRACKET, SUPPORTING

DRIVE HOSES, R.H.

1шт.

16.

87268745

BRACKET, SUPPORTING

DRIVE HOSES, L.H.

1шт.
