Запчасти Case IH SPX3310 (09-003) - FILL GROUP, 3" PRESSURE Liquid Plumbing

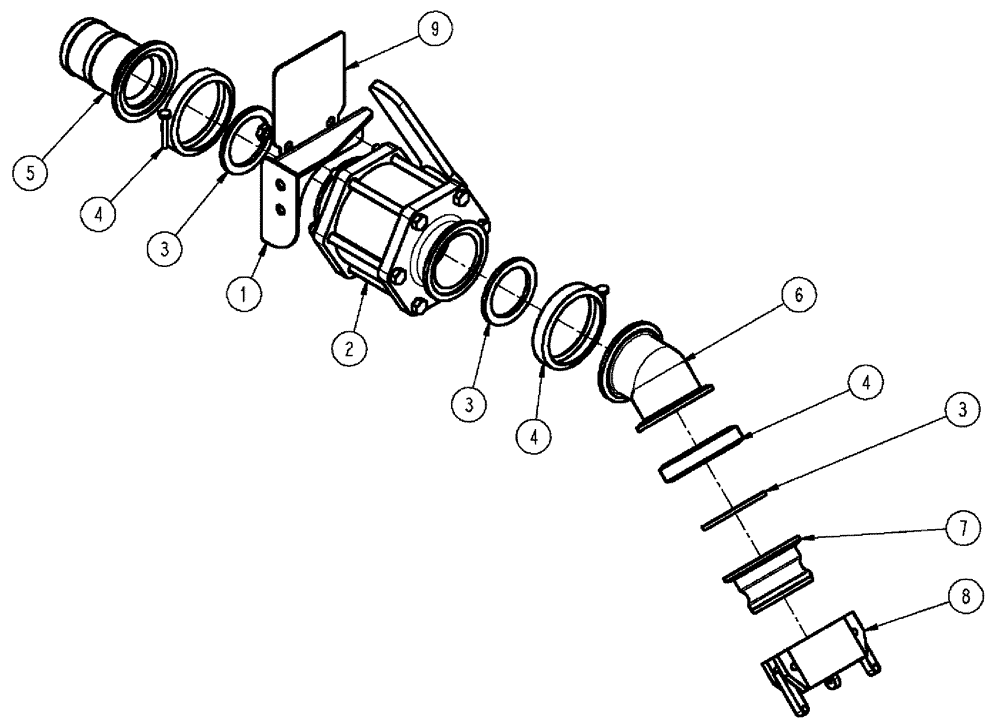

Схема запчастей Case IH SPX3310 - (09-003) - FILL GROUP, 3" PRESSURE Liquid Plumbing
4
7
3
4
3
4
2
6
9
5
8
3
1

Артикул

Название

Примечание

Количество

1

343420A1

MOUNTING PLATE

fill 3" 778D

1шт.

2

BN321070

VALVE,3" Flange

Ball, 3" Flange

1шт.

3

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

3шт.

4

BN321074

CLAMP,101.6mm

Manifold, 3"

3шт.

5

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

6

87266599

COUPLING,3" x 3" 45 Degree Full Port Flange

Manifold 3" x 45º

1шт.

7

343025A1

ADAPTER,3" Full Port Flange x 3" Male Adapter

adapter, 3" manifold x 3" cam

1шт.

8

BN2393384

CAP

Coupler 3" Dust Poly

1шт.

9

343188A1

PLATE

DECAL TANK FILL

1шт.

Выбрано товаров: 9
