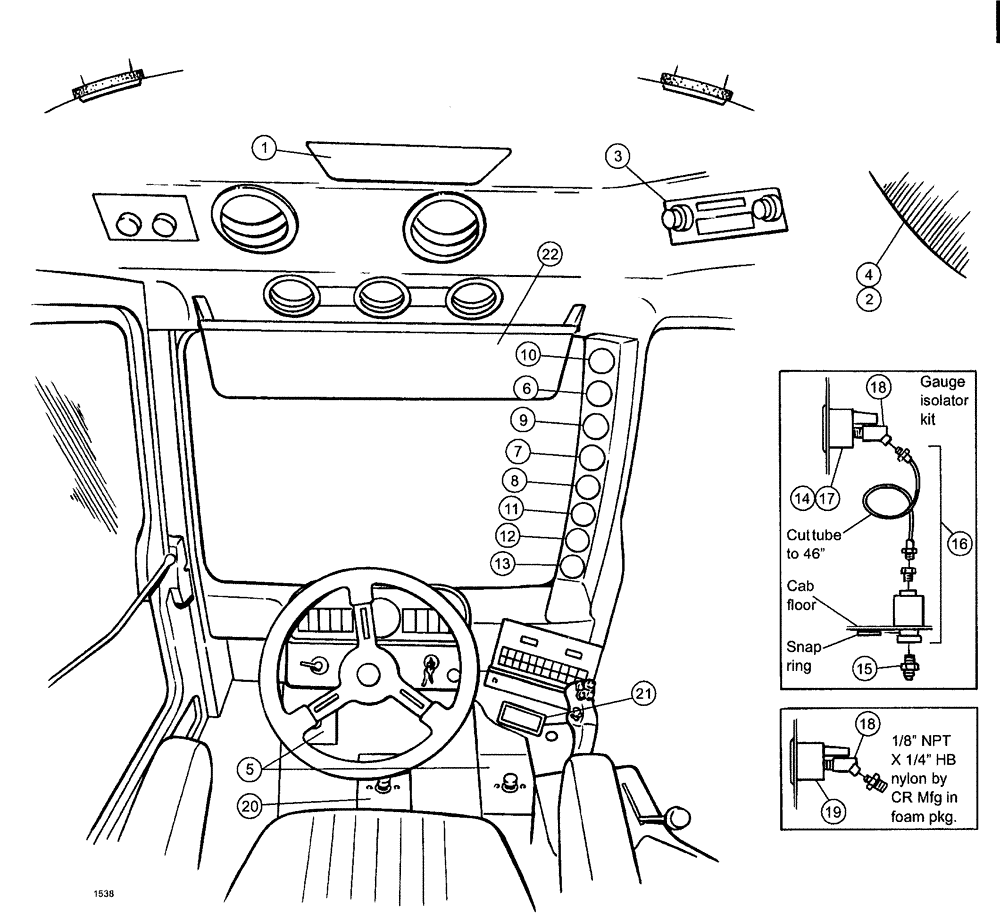

Запчасти Case IH SPX3200B (003) - GUAGES, ACCESSORIES (55) - ELECTRICAL SYSTEMS

1

BN67967

CEILING LAMP

Dome, 12V Polycarb

1шт.

BN300876

BULB

Dome, 12 volt

1шт.

§ indicates service parts for above ref. number

1шт.

2

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

8шт.

3

BN57219

RADIO

AM/FM/Cassette, 12V

1шт.

+

BN57222

ANTENNA

Radio

1шт.

+ Indicates associated part

1шт.

+

BN311133

BRACKET

Antenna, Radio

1шт.

+ Indicates associated part

1шт.

+

BN50051

NUT,1/4"-20, USR

1шт.

+ Indicates associated part

1шт.

+

BN50205

BOLT

1/4"-20 x .625 TH, SS

5шт.

+ Indicates associated part

1шт.

+

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

2шт.

+ Indicates associated part

1шт.

4

BN57220

SPEAKER

-JVC, set of 2

1шт.

5

BN29522

SWITCH

Dimmer Floor Mount

1шт.

+

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

+ Indicates associated part

1шт.

+

BN50051

NUT,1/4"-20, USR

2шт.

+ Indicates associated part

1шт.

+

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

2шт.

+ Indicates associated part

1шт.

+

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

+ Indicates associated part

1шт.

+

BN50205

BOLT

1/4"-20 x .625 TH, SS

4шт.

+ Indicates associated part

1шт.

6

BN67301

FUEL GAUGE

level 12V, N.G.

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

§ indicates service parts for above ref. number

1шт.

7

BN67302

ELECTRICAL GAUGE

TEMP, 280 DEG., 12V. NG

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

§ indicates service parts for above ref. number

1шт.

8

BN67303

ELECTRICAL GAUGE

oil pressure, 100 psi

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

§ indicates service parts for above ref. number

1шт.

9

BN67304

ELECTRICAL GAUGE

VOLT, 12VDC / 10-16

1шт.

BN301818

BULB

12V (1.12" Long)

1шт.

§ indicates service parts for above ref. number

1шт.

10

326944A1

HOURMETER

LCD, 12V

1шт.

11

BN68268

GAUGE

Boom pressure, Incl. Ref items 14, 15, 16 & 18

1шт.

12

BN68269

GAUGE

Sparge pressure, Incl. Ref items 15, 16, 17 & 18

1шт.

13

BN68270

ELECTRICAL GAUGE

ASSY., pressure, foam, includes items 18&19

1шт.

BN309417

FITTING

FT,HB,1/8MPTX1/4HS,NYL

1шт.

» Indicates parts of an "assembly"

1шт.

14

BN67308

GAUGE

boom pressues, 0-200

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

§ indicates service parts for above ref. number

1шт.

15

BN441001

ADAPTER

pipe-37 Flare, 06-04

2шт.

16

BN67300

ISOLATOR

KIT, gauge

2шт.

17

BN304843

GAUGE

PRESSURE, sparge

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

§ indicates service parts for above ref. number

1шт.

18

BN68256

ELBOW

45º 1/8 NPT - Female

3шт.

19

BN67307

ELECTRICAL GAUGE

FOAM, pressure, 0-80

1шт.

BN301819

BULB

12V (Short-1.06")

1шт.

§ indicates service parts for above ref. number

1шт.

20

BN68440

SWITCH

Plumbing Bypass

1шт.

+

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

+ Indicates associated part

1шт.

+

BN50051

NUT,1/4"-20, USR

2шт.

+ Indicates associated part

1шт.

+

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

2шт.

+ Indicates associated part

1шт.

+

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

+ Indicates associated part

1шт.

21

BN66127

ASH TRAY

1шт.

22

BN67055

SUN VISOR

Plastic, 33"

1шт.

+

BN314732

BRACKET

Visor, LH

1шт.

+ Indicates associated part

1шт.

+

BN314731

BRACKET

Visor, RH

1шт.

+ Indicates associated part

1шт.

+

BN304238

MOUNTING PARTS

bracket, rear

1шт.

+ Indicates associated part

1шт.

+

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

+ Indicates associated part

1шт.

+

BN312062

MOUNTING PARTS

bracket, bent, LR

1шт.

+ Indicates associated part

1шт.
