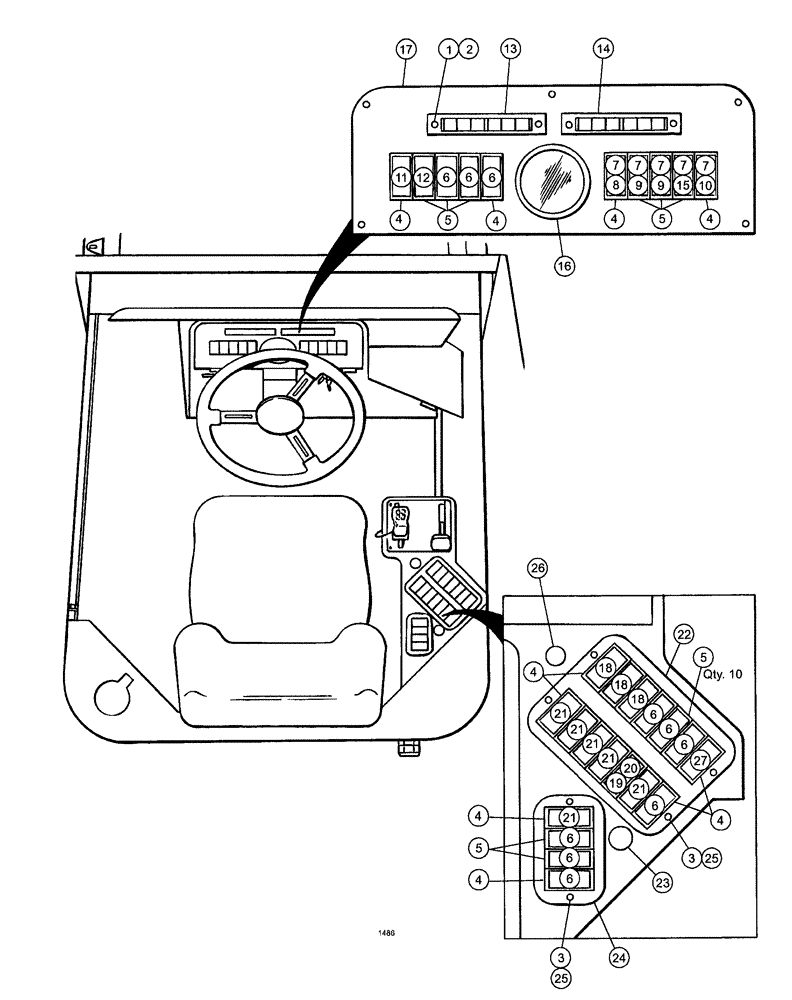

Запчасти Case IH SPX3200B (001) - CONTROL PANELS (55) - ELECTRICAL SYSTEMS

1

BN50795

NUT

hex, #8-32 (Steel)

4шт.

2

BN52046

BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless

8"-32 x 1/2" SS, PH, Phillip

4шт.

3

BN52047

SCREW,Phil Pan Hd, #8 x 3/4", SST

#8 x 3/4 SS, PH, Phillip

11шт.

4

BN65931

PANEL

Switch Mount, End

10шт.

5

BN65932

PANEL

Switch Mount, Middle

18шт.

6

BN65933

PLUG

Switch Mount Panel

10шт.

7

BN65934

SWITCH

Single Pole, On-Off

5шт.

8

BN65935

LIGHT SWITCH

Actuator (Road lights)

1шт.

9

BN65936

ROCKER

Actuator - Floodlight Switch

2шт.

10

BN65937

ROCKER

Actuator - Domelight Switch

1шт.

11

BN65939

SWITCH

with handle on-off, parking brake

1шт.

12

BN65940

SWITCH

W/Handle Off-On-On (Wiper)

1шт.

13

BN65943

INDICATOR LIGHT

Cluster, LH (6)

1шт.

BN301816

BULB

12V

6шт.

§ indicates service parts for above ref. number

1шт.

BN301817

SOCKET

Bulb, For BN65943/44

6шт.

§ indicates service parts for above ref. number

1шт.

14

BN65944

INDICATOR LIGHT

Cluster, RH (6)

1шт.

BN301816

BULB

12V

6шт.

§ indicates service parts for above ref. number

1шт.

BN301817

SOCKET

Bulb, For BN65943/44

6шт.

§ indicates service parts for above ref. number

1шт.

15

BN65943

INDICATOR LIGHT

Hazard Warning

1шт.

16

BN67305

TACHOMETER

0-4000

1шт.

BN301813

BULB

12 V

1шт.

§ indicates service parts for above ref. number

1шт.

BN301814

SOCKET

Light

1шт.

§ indicates service parts for above ref. number

1шт.

BN301815

LIGHT

Filter, Lamp, Green

1шт.

§ indicates service parts for above ref. number

1шт.

17

BN68649

INSTRUMENT PANEL

Dash

1шт.

18

BN65934

SWITCH

Single Pole, On-Off

3шт.

Boom shutoff

1шт.

+

BN65938

ROCKER

Actuator - Switch

3шт.

+ Indicates associated part

1шт.

Liquid Pump

1шт.

19

BN65934

SWITCH

Single Pole, On-Off

1шт.

Liquid Pump

1шт.

20

BN65938

ROCKER

Actuator - Switch

1шт.

Liquid Pump

1шт.

21

BN65942

SWITCH

W/Handle On-Off-On

6шт.

Inner-Outer Boom Fold, Boom Height Sparge, Axle Adj.

1шт.

+

BN302318

TOOL

Switch Removal

1шт.

+ Indicates associated part

1шт.

22

BN310117

PLATE

MOUNT, 14GA., HRS 6.5 X 7.75

1шт.

23

BN301708

CONTROL

Pressure, Foam Marker

1шт.

24

BN66267

PLATE

Mount, 14 GA Hrs, 3.37 x 5.62

1шт.

25

BN67971

FASTENER

#8 Tinnerman

6шт.

26

342465A1

SWITCH

range select

1шт.

Speed control

1шт.

+

BN29440

KNOB

for Contact Block BN29439

1шт.

+ Indicates associated part

1шт.

27

BN306319

SWITCH

Carling, On Off On, Fence Row

1шт.

+

BN306320

SWITCH

Actuator

1шт.

+ Indicates associated part

1шт.

+

BN314026

HARNESS

ADAPTOR, F.Nozzle

2шт.

+ Indicates associated part

1шт.
