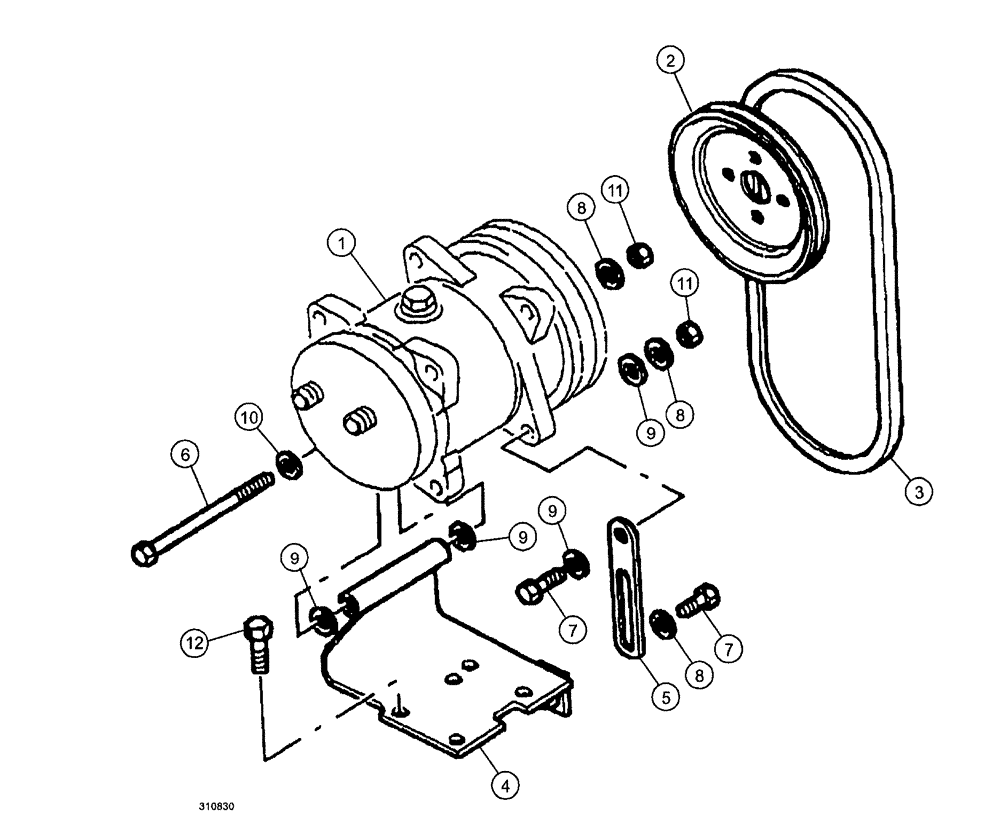

Запчасти Case IH SPX3200B (042) - A/C COMPRESSOR PACKAGE (50) - CAB CLIMATE CONTROL

1

NSS

NOT SOLD SEPARAT

ASSEMBLY, compressor

1шт.

See Fig. 020

1шт.

2

431716A1

PULLEY,147mm OD

A/C Drive

1шт.

3

90-7190T1

V-BELT,0.56" W x 40.25" L

1шт.

4

191951A1

SUPPORT

bracket, compressor

1шт.

5

BN315445

BRACE

A/C compressor

1шт.

6

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

1шт.

7

905-10035

BOLT,Hex Flg, M10 x 35mm

2шт.

8

892-11010

LOCK WASHER,M10

3шт.

10

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

10.8 x 25 x 5 mm

1шт.

9

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

11

100016

NUT,M10 x 1.5, Cl 8

2шт.

12

905-10025

BOLT,Hex Flg, M10 x 25mm

3шт.
