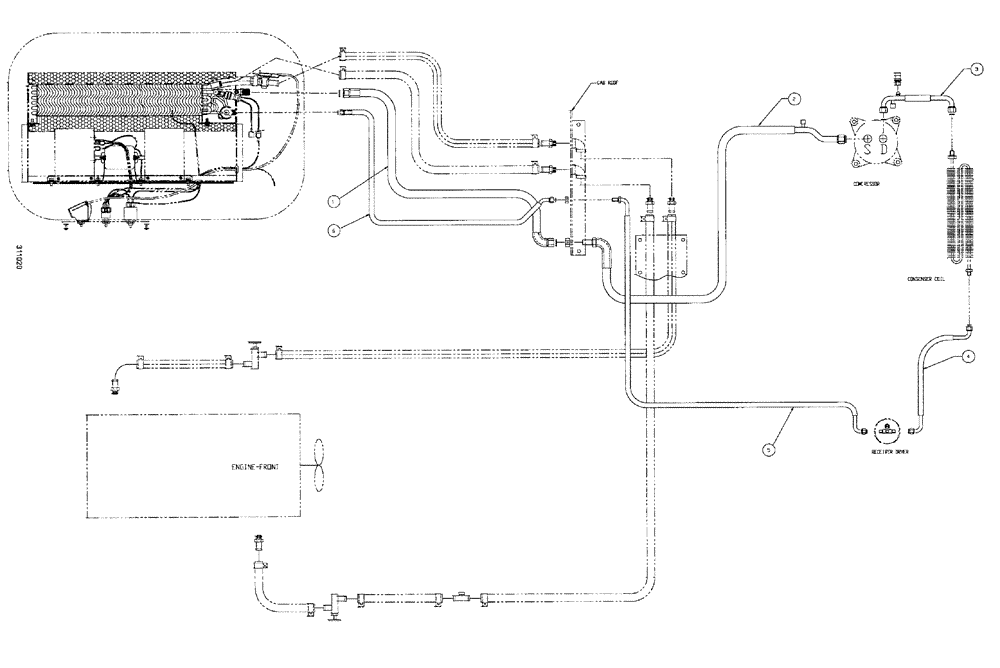

Запчасти Case IH SPX3200B (012) - A/C HOSE KIT (50) - CAB CLIMATE CONTROL

1

BN313002

HOSE

ASSY., without O-Ring, A.C.

1шт.

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

§ indicates service parts for above ref. number

1шт.

189819A1

O-RING,1.78mm Thk x 17mm ID

11/16 ID, HNBR, blk

1шт.

§ indicates service parts for above ref. number

1шт.

2

BN310620

HOSE ASSY.

without ring A.C.

1шт.

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

§ indicates service parts for above ref. number

1шт.

BN312145

JAM NUT

jam, 1-1/16-14

1шт.

§ indicates service parts for above ref. number

1шт.

BN312146

WASHER

1.07 x 1.31 x .06

1шт.

§ indicates service parts for above ref. number

1шт.

3

BN311012

FLEXIBLE HOSE

w/ O-ring (A.C.)

1шт.

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 id x 1/16

1шт.

§ indicates service parts for above ref. number

1шт.

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

§ indicates service parts for above ref. number

1шт.

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

§ indicates service parts for above ref. number

1шт.

4

BN67787

HOSE

without ring A.C.

1шт.

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 id x 1/16

2шт.

§ indicates service parts for above ref. number

1шт.

5

BN67794

HOSE

without ring A.C.

1шт.

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 id x 1/16

1шт.

§ indicates service parts for above ref. number

1шт.

BN312537

WASHER

NUT, JAM 5/8 - 18

1шт.

§ indicates service parts for above ref. number

1шт.

BN312538

WASHER

1шт.

§ indicates service parts for above ref. number

1шт.

6

BN67791

HOSE

without ring A.C.

1шт.

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 id x 1/16

2шт.

§ indicates service parts for above ref. number

1шт.
