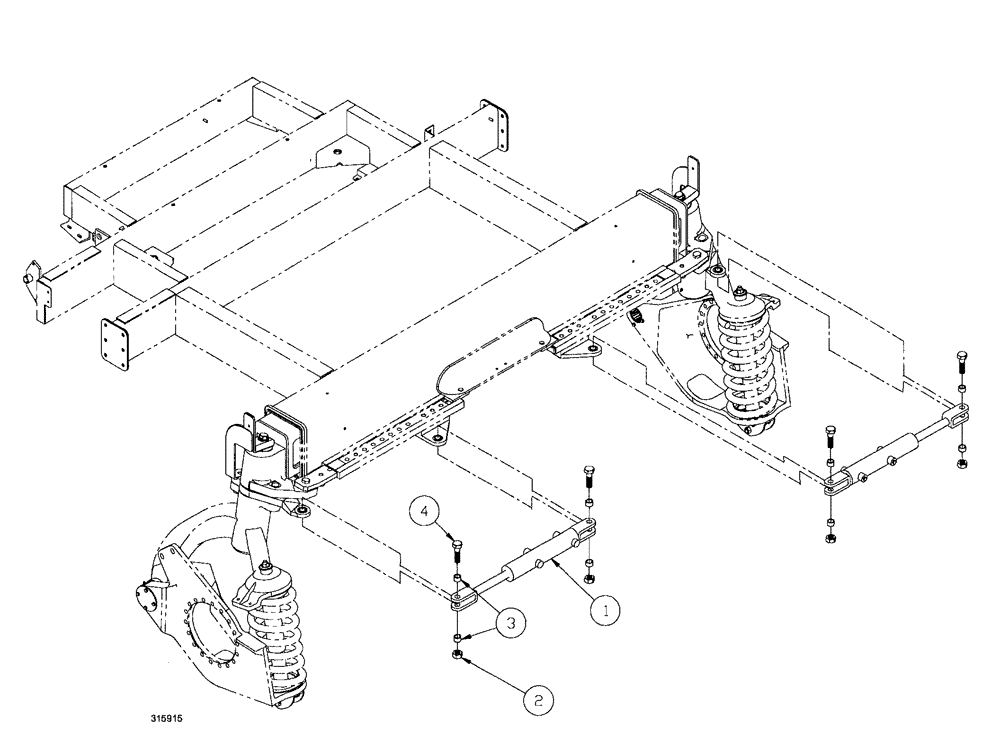

Запчасти Case IH SPX3200B (066) - STEERING CYLINDER GROUP (41) - STEERING

1

NSS

NOT SOLD SEPARAT

CYL. HYD., 2.50 X 10 X 1.2

2шт.

See Fig. 115

1шт.

2

BN305004

LOCK NUT

7/8-9, NLN, G8

4шт.

3

BN313257

BUSHING

spring

8шт.

4

426-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

4шт.
