(102) - 8 - BANK DIRECTIONAL VALVE

Запчасти Case IH SPX3200B (102) - 8 - BANK DIRECTIONAL VALVE (35) - HYDRAULIC SYSTEMS

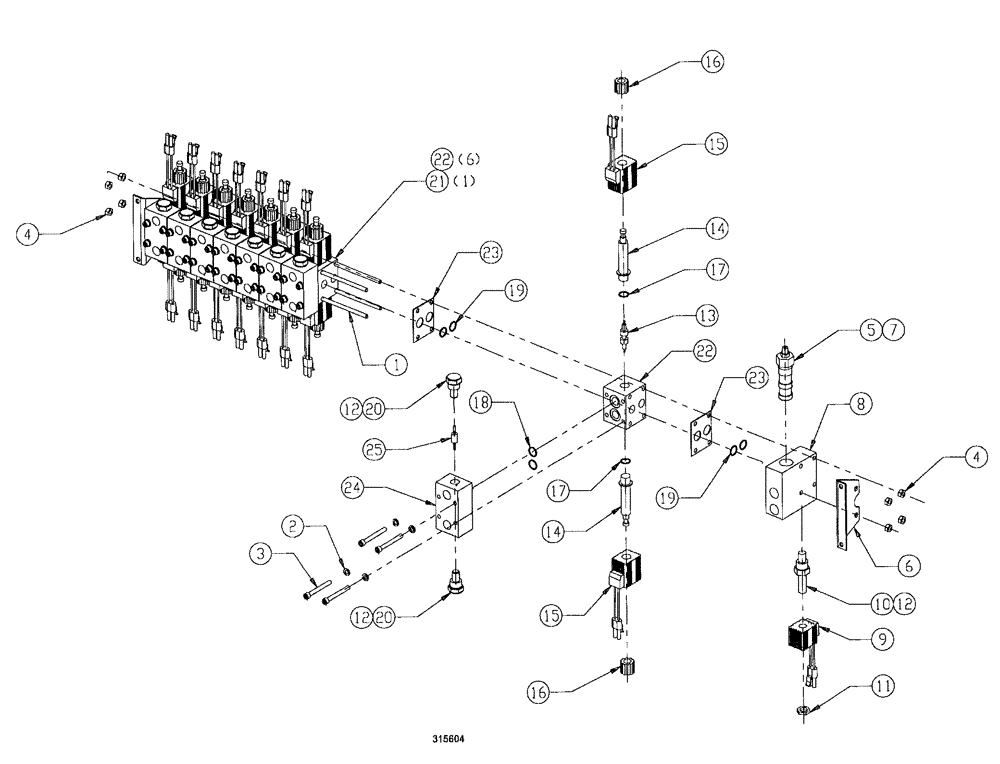

Схема запчастей Case IH SPX3200B - (102) - 8 - BANK DIRECTIONAL VALVE (35) - HYDRAULIC SYSTEMS
17
23
12
16
25
12
7
22
15
19
14
9
4
24
21
19
12
17
6
10
22
2
20
3
11
23
15
20
1
18
14
13
8
4
16
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN24156

THREADED TIE-ROD

1/4"-20 x 17-3/4"

4шт.

8 Bank

1шт.

2

BN50139

WASHER

1/4" spring lock

28шт.

3

BN50799

SCREW,1/4" - 20 x 2 1/4", Stainless

1/4 - 20 X 2.25 SS

28шт.

4

280129

NUT,1/4"-20

4шт.

5

BN67314

VALVE

Flow Control, Waterman Stack

1шт.

6

BN67858

MOUNTING PARTS

Waterman Valve

2шт.

7

BN68208

SEAL

Kit, Flow Regulator

1шт.

8

BN68209

VALVE BLOCK

Body, Unloader

1шт.

9

BN98212

COIL

12 VDC Unloader Valve - W/Wire Leads & Packard Ends

1шт.

10

BN98217

CARTRIDGE

Unloader Valve #29345

1шт.

11

BN98218

NUT

Unloader Valve #29345

1шт.

12

BN98219

SEAL KIT

Cartridge

17шт.

13

BN98220

SPOOL

VALVE, waterman, #29345

8шт.

14

BN98221

TUBE

Valve

16шт.

15

BN98222

COIL

W/Wire Lead & Pack-End

16шт.

16

BN98223

NUT

Waterman Valve #29345

16шт.

17

BN98224

O-RING

Tube Assy #98221

16шт.

18

BN98225

O-RING

Stacking Valve #29345

16шт.

19

BN98226

O-RING

Sandwich Valve #29345

16шт.

20

BN98227

VALVE

Check, 30 LB Waterman

16шт.

21

BN98324

BLOCK

End

1шт.

22

BN98325

BLOCK

Valve (Center) 29345

7шт.

23

86986508

PLATE

Backing, Anodized

8шт.

24

BN98677

BLOCK

For 29345A (Dual)

8шт.

25

BN98679

CHECK VALVE

Piston, Dual, 29345

8шт.
