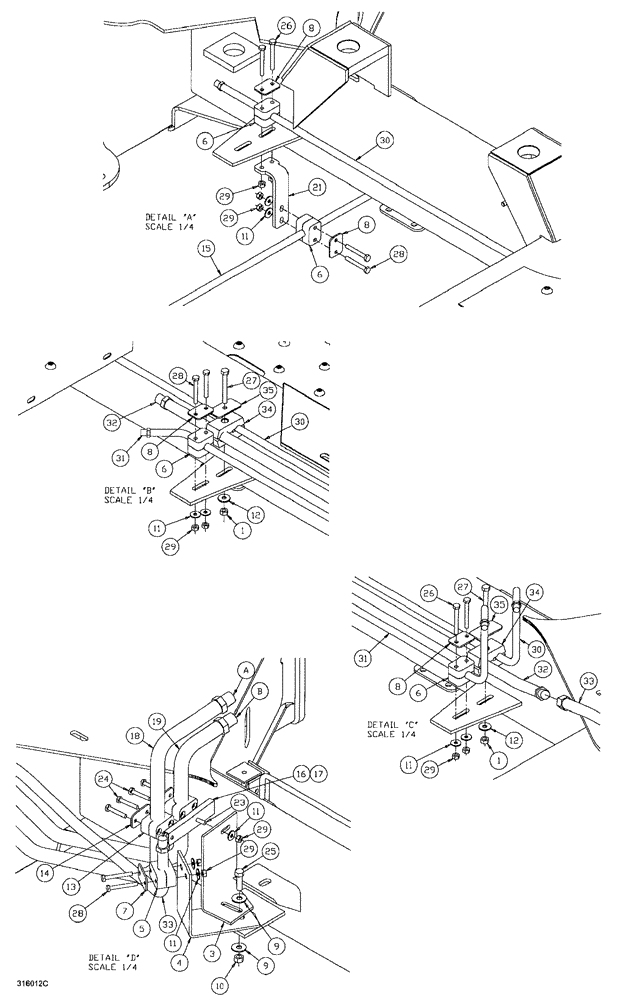

Запчасти Case IH SPX3200B (092) - STEEL LINES GROUP (CONT) (35) - HYDRAULIC SYSTEMS

21

BN316002

MOUNTING PARTS

tube, steering

1шт.

22

BN316101

SPACER

C-rail, hyd. tube

2шт.

23

BN50211

BOLT

1/4"-20 x .75, HH, G5

5шт.

24

50364

BOLT Hex, 1/4"-20 x 1 1/2", G5

28шт.

25

BN50403

BOLT

Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

26

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

4шт.

27

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

28

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

8шт.

29

280129

NUT,1/4"-20

17шт.

30

BN66212

TUBE ASSY.

steel, 1/2" OD

1шт.

31

BN66214

TUBE ASSY.

Steel, 1/2"

1шт.

32

BN67649

HYD TUBE

Steel, 3/4", 2350 PSI

1шт.

33

BN67650

HYD TUBE

Steel, 3/4", 2350 PSI

1шт.

34

BN67651

CLAMP

Dual

2шт.

35

BN63861

COVER

Plate, Dual 3/4" Clamp

2шт.

36

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

4шт.

37

BN316499

TUBE

tube, steel hyd., 1"

1шт.

38

BN316500

HOSE ASSY.

tube, steel hyd., 1"

1шт.
