(091) - STEEL LINES GROUP (CONT)

Запчасти Case IH SPX3200B (091) - STEEL LINES GROUP (CONT) (35) - HYDRAULIC SYSTEMS

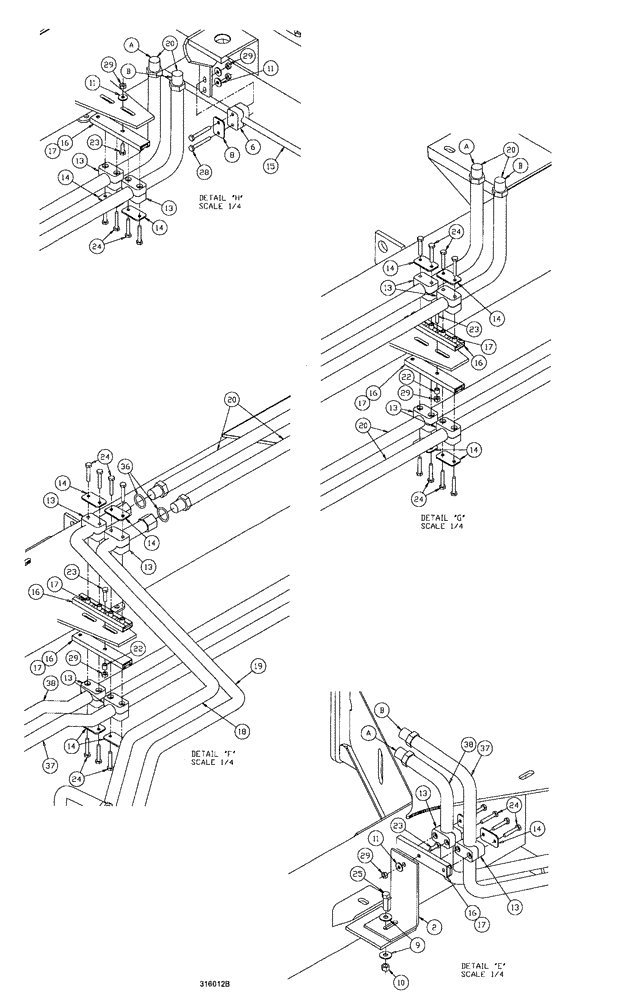

Схема запчастей Case IH SPX3200B - (091) - STEEL LINES GROUP (CONT) (35) - HYDRAULIC SYSTEMS
13
22
a
24
37
14
17
b
13
18
14
20
6
23
17
16
13
14
38
b
14
36
19
14
23
13
29
13
24
28
24
14
16
16
13
9
13
2
16
11
11
14
a
23
a
37
15
13
25
8
11
24
29
20
20
14
29
17
16
b
17
29
24
13
17
29
38
23
22
14
10
16
24
20
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

21

BN316002

MOUNTING PARTS

tube, steering

1шт.

22

BN316101

SPACER

C-rail, hyd. tube

2шт.

23

BN50211

BOLT

1/4"-20 x .75, HH, G5

5шт.

24

50364

BOLT Hex, 1/4"-20 x 1 1/2", G5

28шт.

25

BN50403

BOLT

Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

26

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

4шт.

27

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

28

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

8шт.

29

280129

NUT,1/4"-20

17шт.

30

BN66212

TUBE ASSY.

steel, 1/2" OD

1шт.

31

BN66214

TUBE ASSY.

Steel, 1/2"

1шт.

32

BN67649

HYD TUBE

Steel, 3/4", 2350 PSI

1шт.

33

BN67650

HYD TUBE

Steel, 3/4", 2350 PSI

1шт.

34

BN67651

CLAMP

Dual

2шт.

35

BN63861

COVER

Plate, Dual 3/4" Clamp

2шт.

36

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

4шт.

37

BN316499

TUBE

tube, steel hyd., 1"

1шт.

38

BN316500

HOSE ASSY.

tube, steel hyd., 1"

1шт.
