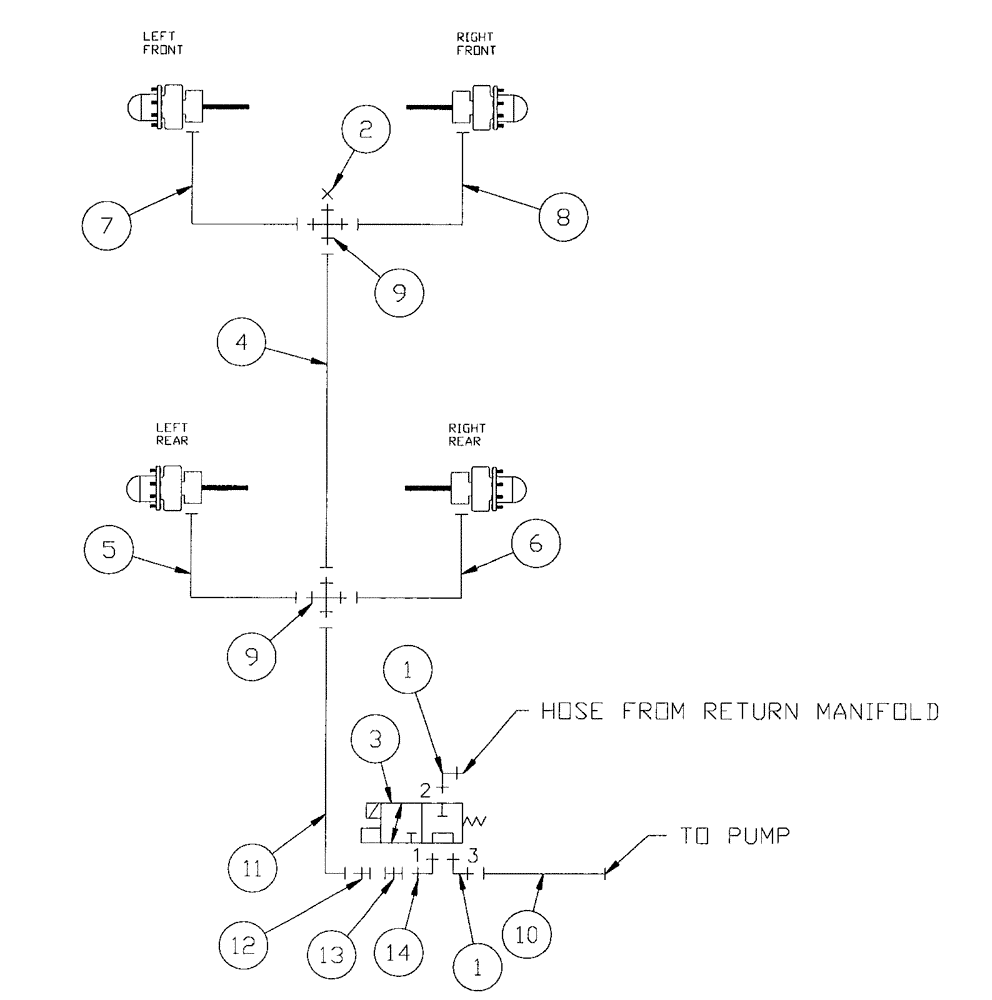

Запчасти Case IH SPX3200B (088) - PARK BRAKE GROUP (33) - BRAKES & CONTROLS

1

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

2шт.

2

BN21531

NUT,7/16"-20, 37 Degree

1шт.

3

BN29955

SOLENOID

Valve, Brake Actuator

1шт.

4

BN304336

HOSE

1/4" x 122" 100R1

1шт.

5

BN316466

HOSE ASSY.

4 x 144"

1шт.

6

BN316467

HOSE ASSY.

4 x 161"

1шт.

7

BN316468

HOSE ASSY.

4 x 154"

1шт.

8

BN316469

HOSE ASSY.

4 x 188"

1шт.

9

BN54043

ADAPTER

cross, 1/4" JIC

2шт.

10

BN54184

HOSE

1/4" x 124", 100R1

1шт.

11

BN318558

HOSE ASSY.

4 x 15"

1шт.

12

BN307992

COUPLING

diagnostic -4MNPT

1шт.

13

BN307993

NIPPLE, LUBE

NIPPLE diagnostic, 6FFOR

1шт.

14

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

1шт.

14a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

14b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
