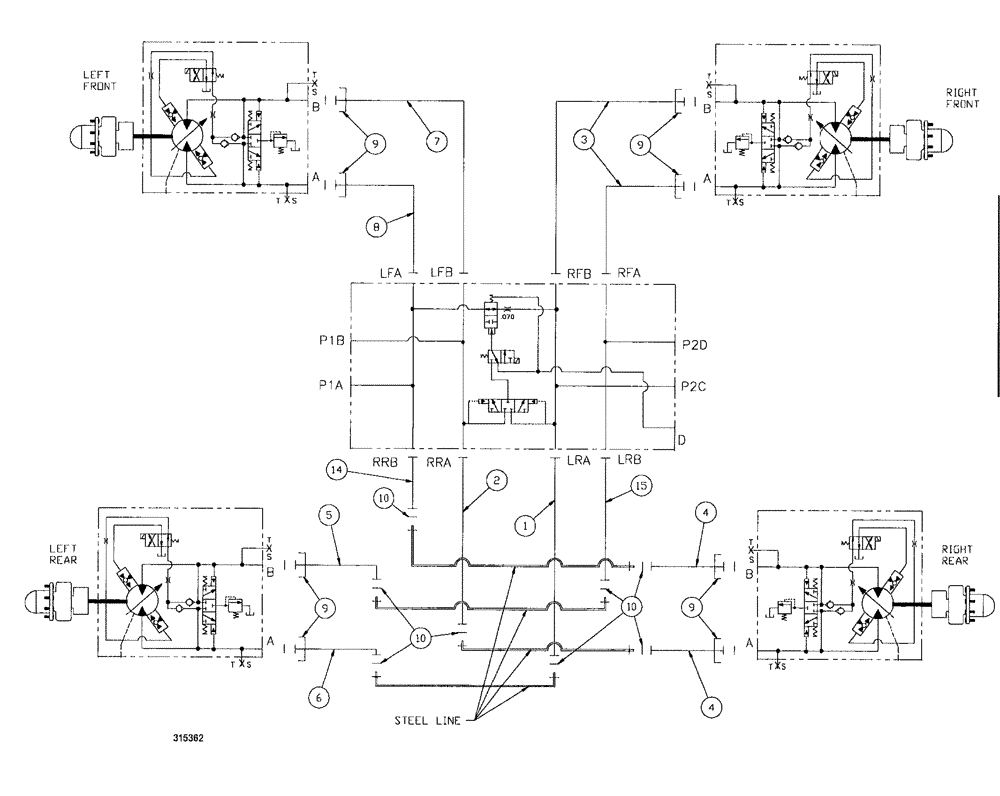

Запчасти Case IH SPX3200B (086) - DRIVE LOOP ASSEMBLY (29) - HYDROSTATIC DRIVE

1

BN315470

HOSE ASSY.

16 x 22"

1шт.

2

BN315471

HOSE ASSY.

16 x 27"

1шт.

3

BN315983

HOSE ASSY.,19.05mm ID x 5334mm L

12 x 210"

2шт.

4

BN315984

HOSE ASSY.,19.05mm ID x 2794mm L

12 x 110"

2шт.

5

BN315985

HOSE ASSY.,19.05mm ID x 2794mm L

12 x 110"

1шт.

6

BN315986

HOSE ASSY.,19.05mm ID x 2844.8mm L

12 x 112"

1шт.

7

BN315987

HOSE ASSY.,19.05mm ID x 3251.2mm L

12 x 128"

1шт.

8

BN315988

HOSE ASSY.,19.05mm ID x 3302mm L

12 x 130"

1шт.

9

BN52315

KIT

1" Split Flange Code 62

8шт.

BN52317

O-RING

For 52315 (FK-16H)

1шт.

§ indicates service parts for above ref. number

1шт.

10

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

8шт.

11

BN57235

CLAMP

Assy, 1"

18шт.

12

86632587

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

18шт.

13

BN307990

SLEEVE

hose 15" x 45"

8шт.

14

BN318762

HOSE ASSY.

16 x 19.50"

1шт.

15

BN318763

HOSE ASSY.

16 x 24.50"

1шт.
