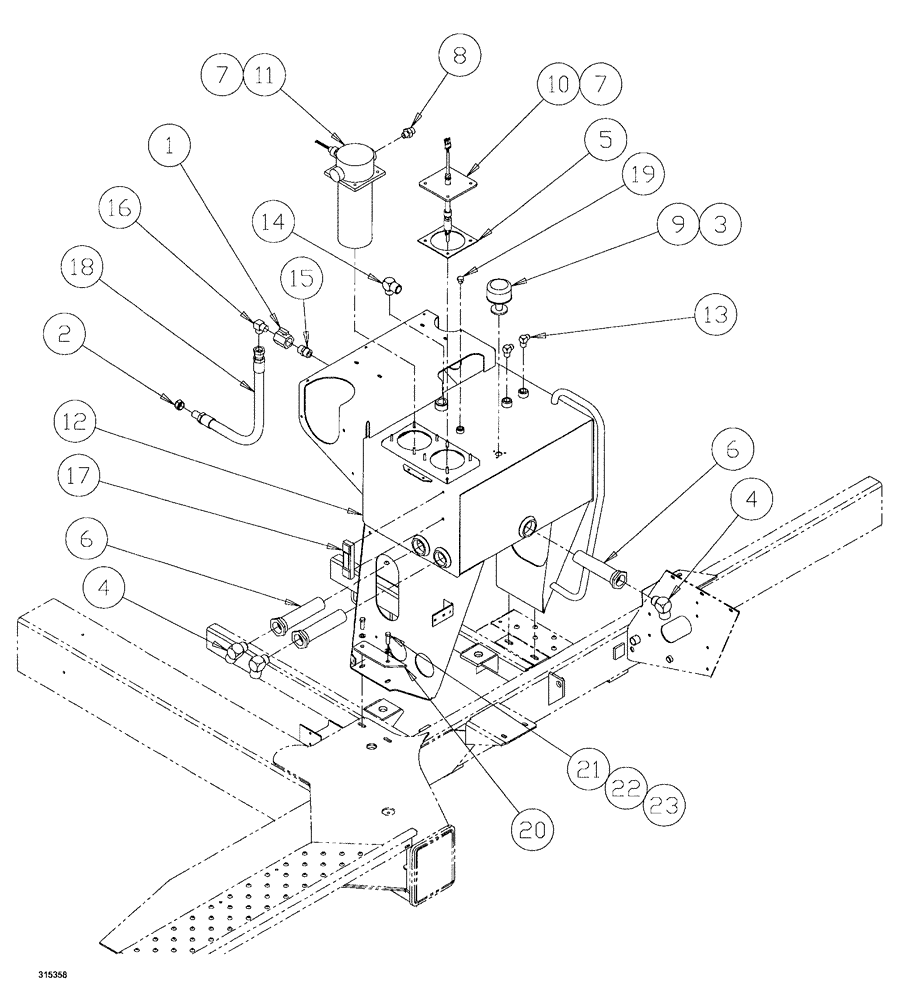

Запчасти Case IH SPX3200B (060) - OIL TANK ASSEMBLY (29) - HYDROSTATIC DRIVE

1

BN53473

VALVE,1" NPT

SS-Ball (2-Way) 1" NP

1шт.

2

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

3

BN301010

BOLT,Hex, M6 x 10, 10.9, Full Thd

3шт.

4

BN302577

ELBOW

20MOR - 20MB X 90

3шт.

5

BN302982

GASKET,3.17mm Thk

PLATE, cover

1шт.

6

BN303528

STRAINER ASSY.

32MBx-20FB,100

3шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

8шт.

8

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

1шт.

9

BN304339

VALVE

Breather, Used with Part Number BN322802, Does not contain a replacable element

1шт.

9

BN305158

FILTER ASSY

Breather

1шт.

BN316639

FILTER, ELEMENT

ELEMENT, FILTER air

1шт.

» Indicates parts of an "assembly"

1шт.

BN305158

FILTER ASSY

Breather

1шт.

» Indicates parts of an "assembly"

1шт.

10

BN322802

SWITCH

Level Temp Grp

1шт.

11

BN313777

FILTER

FILTER, OIL assembly, in tank

1шт.

NSS

NOT SOLD SEPARAT

FILTER, TANK, SAE24, 6ABS

1шт.

» Indicates parts of an "assembly"

1шт.

See Fig. 105

1шт.

BN311360

INDICATOR

LINE, indicator

1шт.

» Indicates parts of an "assembly"

1шт.

12

BN318317

TANK

oil

1шт.

13

BN445001

FITTING

Adapter, 90°1 1/16-12 O Ring x 1 1/16-12 JIC

2шт.

14

BN51621

FITTING

Elbow 90, O-Ring 37 Flare

1шт.

15

BN51656

ADAPTER

FT, STR, 1 NPTF, Male

1шт.

16

BN53809

ELBOW

FT, Adapter, 90°, 1" NPT x 1/16" JIC

1шт.

17

BN53957

GAUGE

SIGHT, with temperature

1шт.

18

BN54199

HOSE,0.75" ID x 30.00", SAE 100R1

Assembly

1шт.

19

BN446048

PLUG

hex, O-RING, -6, 9/16-18

1шт.

20

BN300172

PLATE

2шт.

21

100038

NUT,M12 x 1.75, Cl 8

4шт.

22

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

23

BN300500

WASHER,M12, 10.9

8шт.
