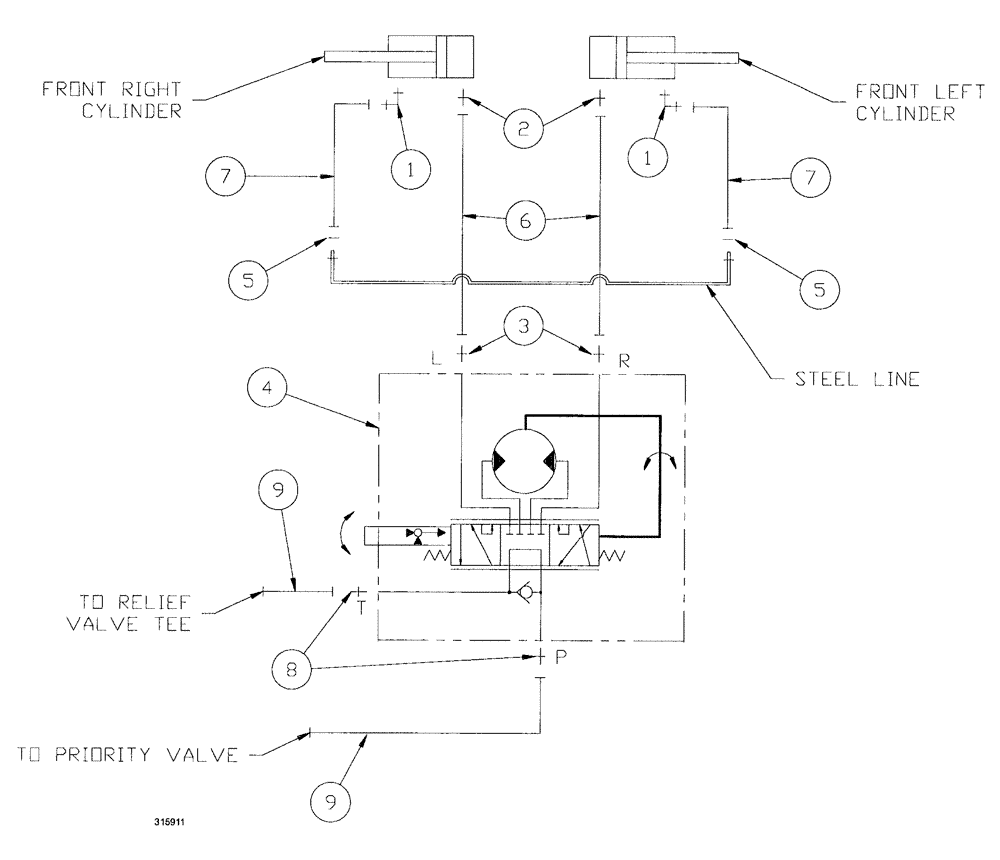

Запчасти Case IH SPX3200B (094) - 2 WHEEL STEER GROUP (27) - REAR AXLE SYSTEM

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

2

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

3

BN302647

FITTING

6MOR - 8MB

2шт.

4

NSS

NOT SOLD SEPARAT

CONTROL, steering, Orbitrol

1шт.

See Fig. 004

1шт.

5

BN305412

O-RING

6 FFOR

2шт.

6

BN316687

HOSE

6 X 103 in.

2шт.

7

BN307877

HOSE ASSY.

2шт.

8

BN57226

ADAPTER

Fitting, O-Ring, 37 FL 8-6S

2шт.

9

BN68815

PLATE

3/8 in. I.D. X 80 in.

2шт.
