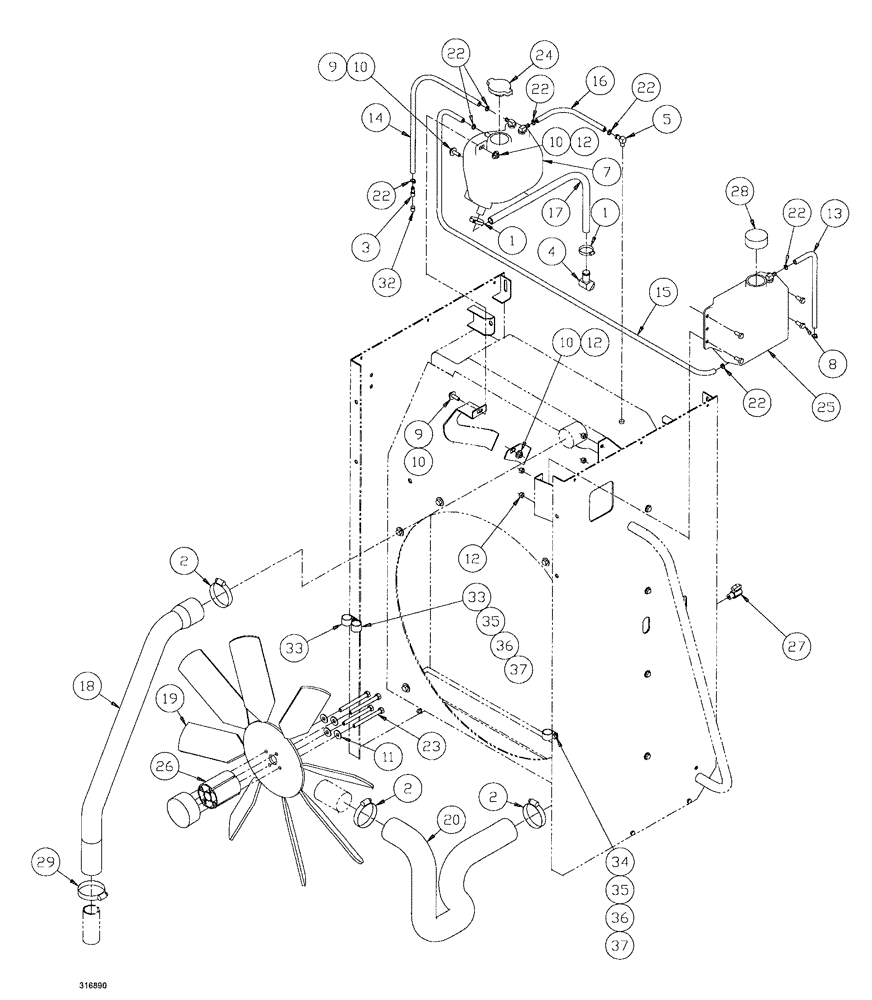

Запчасти Case IH SPX3200B (055) - RADIATOR COMPONENTS GROUP (10) - ENGINE

1

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

*2

J918521

HOSE CLAMP,59mm - 83mm

radiator. 59-83 mm

3шт.

3

BN53433

FITTING

FT, HB, 1/4 in. NPT X 1/4 in. HS, STL

1шт.

*4

86637717

FITTING,45 Degree, 3/4" Hose x 1/2" NPTF Beaded

1шт.

*5

86637719

FITTING,90 Degree, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

*7

87413715

RESERVOIR

assembly, deaeration

1шт.

8

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

4шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

10

BN300497

WASHER,M8, 10.9

4шт.

11

BN300499

WASHER,M10, 10.9

4шт.

12

86528579

NUT,M8 x 1.25

6шт.

13

BN315971

HOSE,0.31" ID x 40.00"

1шт.

14

BN318712

HOSE, BULK

HOSE, METERS 5/16" x 40"

1шт.

15

BN318656

HOSE,0.31" ID x 32.00"

1шт.

16

BN318657

HOSE, BULK

HOSE, METERS 1/4" x 12"

1шт.

17

BN318658

HOSE, BULK

HOSE, METERS 3/4" x 44"

1шт.

18

BN315977

RADIATOR HOSE,1.77" ID, 2.25" ID x 26.81", SAE J20, SAE 20R4 CLASSD1

1шт.

19

BN316001

FAN

28", 8 blade, metal

1шт.

20

BN316867

RADIATOR HOSE,2.25" ID x 15.57", SAE 20R4 Class D1 per SAE J20

Lower

1шт.

21

331-512

ANTIFREEZE

mixed 50-50

60шт.

22

BN76094

HOSE CLAMP

SS #M4

7шт.

23

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

*24

A170241

RADIATOR CAP

15 psi

1шт.

*25

A184395

RESERVOIR

Bottle, Coolant Recovery

1шт.

*26

87031374

SPACER

Fan, 70 mm

1шт.

*27

H434809

COCK, DRAIN

VALVE

1шт.

*28

1547924C1

CAP

coolant recovery bottle

1шт.

*29

J922847

CLAMP

HOSE, rad, 40-64 mm

1шт.

32

BN72167

BUSHING

reducer, 1/2-14 x 1/4-18

1шт.

33

BN43197

CLAMP

vinyl covered, 3/4"

2шт.

34

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

35

BN50141

WASHER

5/16, FW, G5

2шт.

36

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

37

BN55360

LOCK NUT

5/16"-18, NLN, G5

2шт.

*Part available only through Case's North American Parts Organization (NAPO).
