Запчасти Case IH SPX3200B (045) - ENGINE MOUNT GROUP (10) - ENGINE

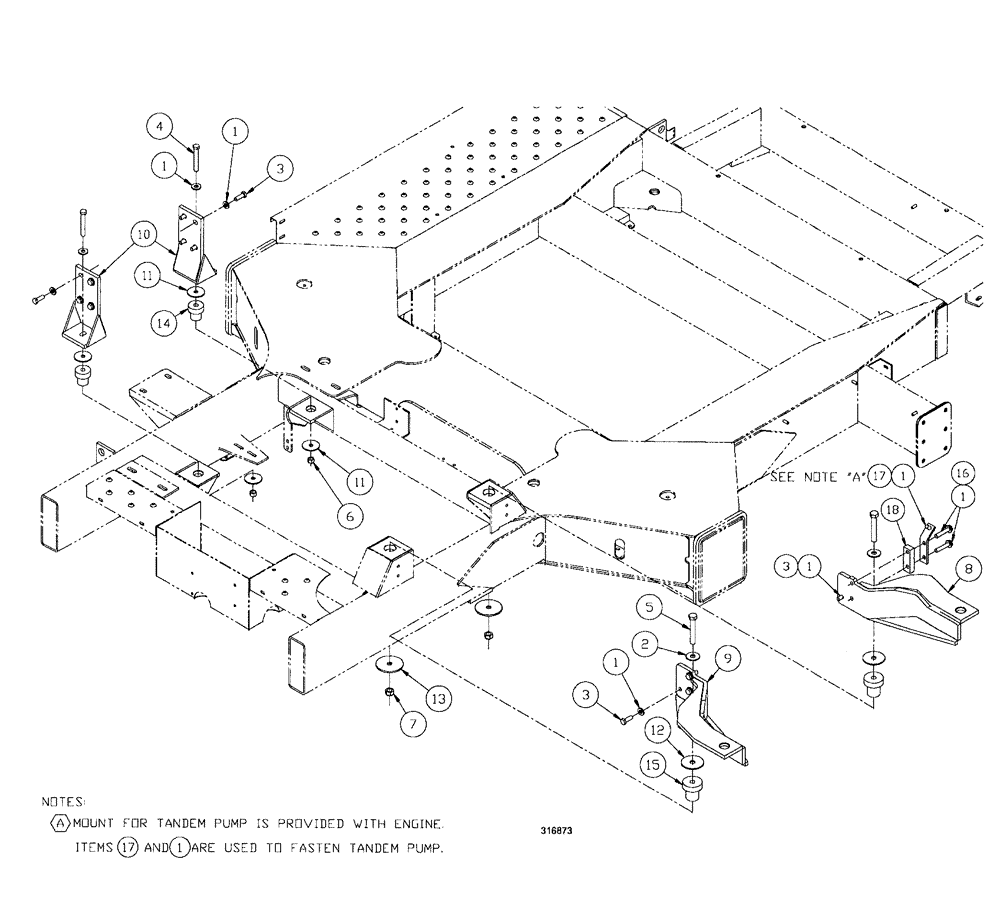

Схема запчастей Case IH SPX3200B - (045) - ENGINE MOUNT GROUP (10) - ENGINE
1
1
12
4
15
8
2
3
11
1
6
10
13
3
5
16
1
1
1
7
3
9
11
14
18
17

Артикул

Название

Примечание

Количество

1

BN300500

WASHER,M12, 10.9

17шт.

2

BN300501

WASHER

M16, FW, 10.9

2шт.

3

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

4

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

5

43281

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

2шт.

6

100038

NUT,M12 x 1.75, Cl 8

2шт.

7

832-46416

NUT,M16 x 2, Cl 8

2шт.

8

BN316806

MOUNTING PARTS

engine/rad, front

1шт.

9

BN316811

MOUNTING PARTS

engine/rad, rear

1шт.

10

BN316865

MOUNTING PARTS

engine, rear

2шт.

11

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

4шт.

12

BN316871

WASHER

snubber, top

2шт.

13

BN316872

WASHER

snubber, bottom

2шт.

*14

700707039

RUBBER MOUNTING

Isolator

2шт.

*15

A141451

SHOCK ABSORBER

MOUNT, cab, rear

2шт.

*16

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

*17

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

18

BN318273

SPACER

block

1шт.

*Part available only through Case's North American Parts Organization (NAPO).

1шт.
