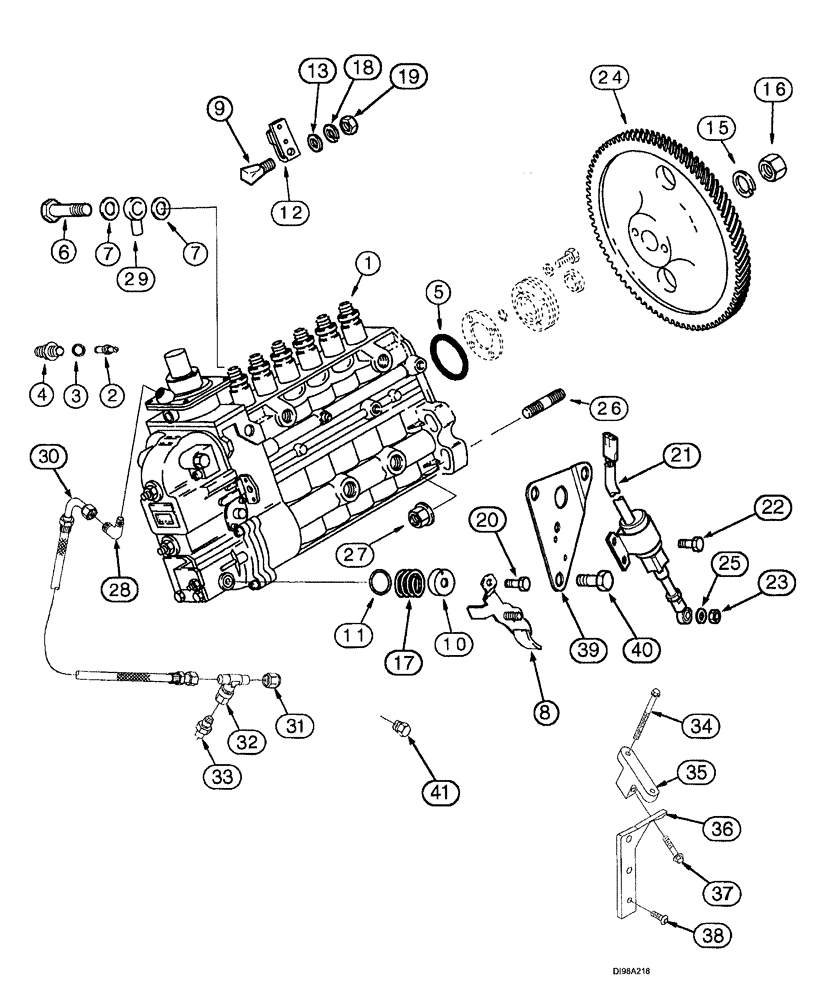

Запчасти Case IH SPX3200B (040) - FUEL INJECTION PUMP (10) - ENGINE

1

J935772

PUMP

ASSY.

1шт.

Includes Refs. 2 - 19

1шт.

2

A77720

PIN

Timing

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

J924605

SEAL

"D" shaped ring

1шт.

6

J932096

VALVE

BOLT, banjo

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER, 14 X 20 X 1 mm

2шт.

8

J935759

LEVER

1шт.

9

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

10

691292C1

RETAINER

Spring

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

seal

1шт.

12

1808728C1

LEVER

1шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

J920922

LOCK WASHER

1шт.

16

J920921

NUT

1шт.

17

J912890

SPRING

1шт.

18

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

19

829-1306

NUT,M6, Cl 10

1шт.

20

86624997

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

21

J935431

SOLENOID

ASSY.

1шт.

22

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

23

832-10406

NUT,M6 x 1, Cl 8

1шт.

24

J931382

GEAR

1шт.

25

J934022

WASHER

1шт.

26

J907978

STUD

55 mm, 2 - 5/32 in.

4шт.

27

J902662

FLANGE NUT

hexagon, flange

4шт.

28

68139

ELBOW

ADAPTER, male

1шт.

29

J932321

UNION

CONNECTOR

1шт.

30

J918536

FLEXIBLE HOSE,295.00 mm

Flexible

2шт.

31

J921556

CAP

TUBE

1шт.

32

J833291

TEE, rectanguler ring

1шт.

34

J806715

SCREW

hex head, flange cap

2шт.

35

J930924

BRACE

PUMP, fuel

2шт.

36

J928898

SUPPORT

PUMP, fuel

3шт.

37

J901445

FLANGE BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

38

J928231

SCREW,Truss Torx, M8 x 1.25 x 25mm, Cl 10.9

CAP, round head

2шт.

39

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

See Fig. 039

1шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

3шт.

41

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

1шт.
