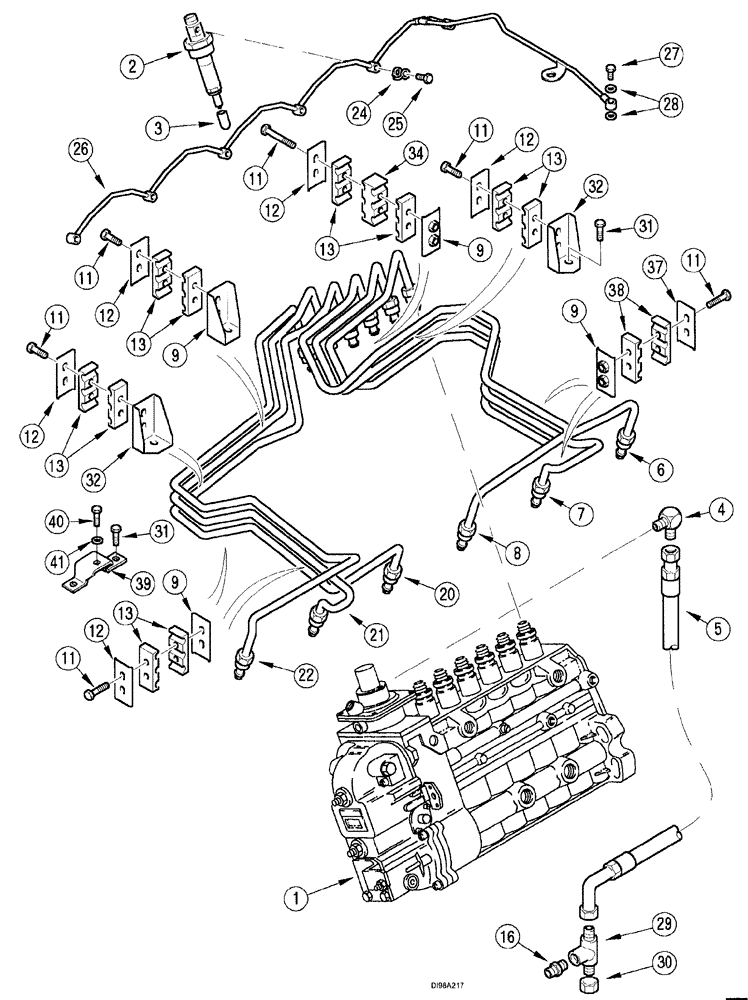

Запчасти Case IH SPX3200B (038) - FUEL INJECTION SYSTEM (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

ASSY., pump

1шт.

See Fig. 040

1шт.

2

NSS

NOT SOLD SEPARAT

ASSY., nozzle

6шт.

See Fig. 041

1шт.

3

J906659

SEAL

M7

6шт.

4

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

5

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

6

J930739

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

ASSY., cylinder 1

1шт.

7

J930740

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

ASSY., cylinder 2

1шт.

8

J930741

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

ASSY., cylinder 3

1шт.

9

J917716

BRACE

3шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

12шт.

12

J904519

SUPPORT

5шт.

13

J917747

CLAMP

ISOLATOR

10шт.

16

J932321

UNION

CONNECTOR

1шт.

20

J930742

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

ASSY., cylinder 4

1шт.

21

J930743

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

ASSY., cylinder 5

1шт.

22

J930744

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 935 mm L

ASSY., cylinder 6

1шт.

24

J903380

SEAL

Banjo connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

26

J930847

MANIFOLD

1шт.

27

J924726

BANJO BOLT

BOLT, banjo

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

29

J924346

TEE

1шт.

30

86511869

CAP,7/16" - 20 JIC

1шт.

31

J930837

FLANGE BOLT,Hex, M8 x 1.25 x 50mm

BOLT, M8 X 25; 8,8

4шт.

32

J933301

BRACE

2шт.

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

1шт.

Not Shown

1шт.

36

CURJ904711

CLAMP

2шт.

37

J917717

BRACE

2шт.

38

J917746

CLAMP

4шт.

39

J930751

BRACE

1шт.

40

628-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

1шт.

41

80681

LOCK WASHER,5/16"

1шт.
